Powder Metallurgy Products
Precision sintered metal parts for automotive, power tools, appliances and industrial applications. From gears and structural components to custom PM parts, we deliver quality solutions with GB9-grade precision and IATF 16949 certified quality.
Quick Answer
What products are best suited to powder metallurgy?
Powder metallurgy is strongest when a part needs tight cost control at volume, repeatable geometry, and minimal raw-material waste. On this page, buyers can compare the main PM product families we supply, including gears, structural parts, bearing-related components, and custom sintered assemblies.
Key Points
- PM gears and structural parts are often chosen when machining cost becomes too high at scale.
- Self-lubricating or porous components work well where oil retention or controlled density matters.
- Custom products normally move fastest when drawings, annual volume, and target material are defined early.
Related Pages
Technical Specifications
Key Features

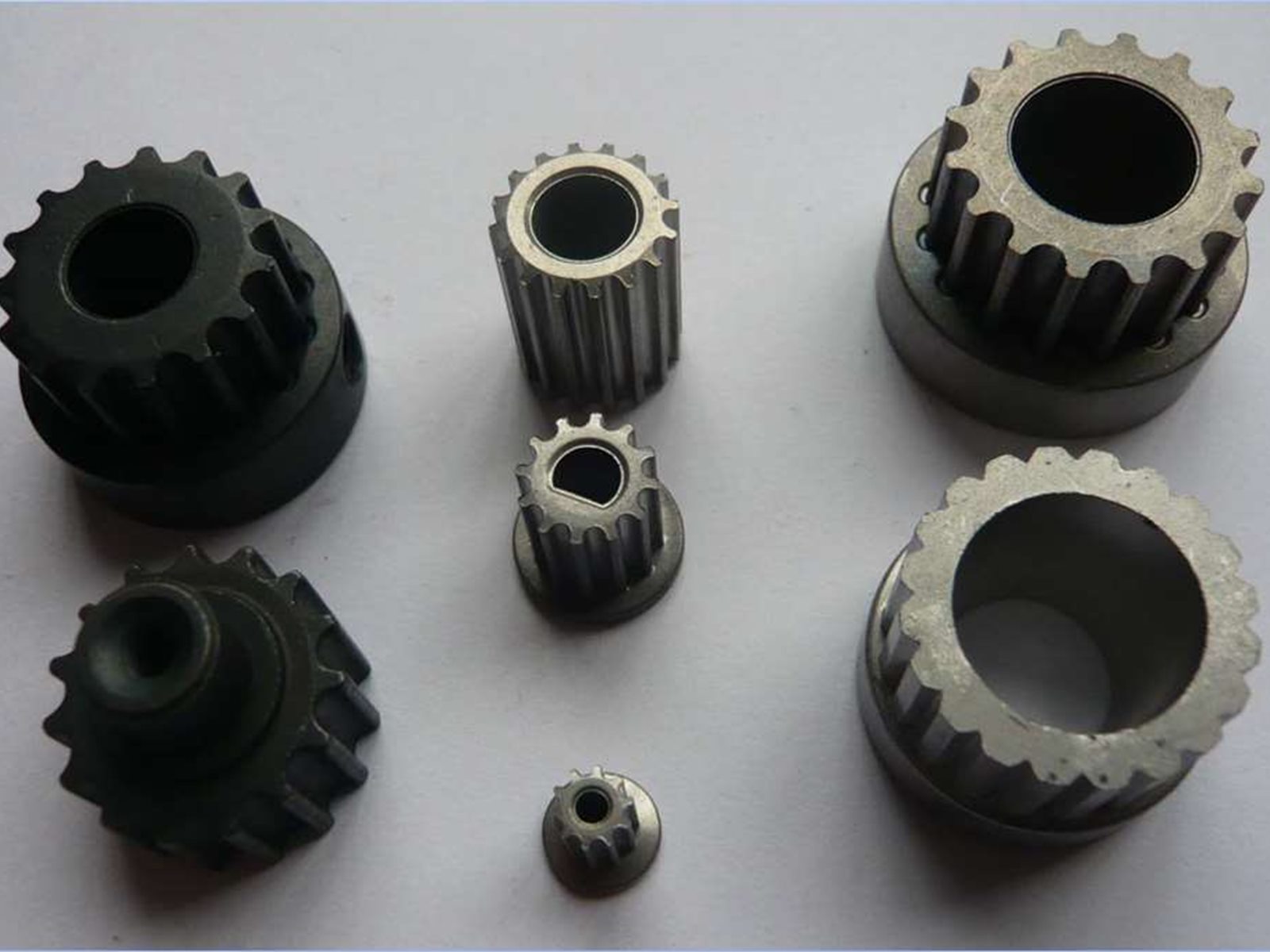

- Spur Gears: High transmission efficiency for parallel shafts
- Helical Gears: Smooth operation, higher load capacity

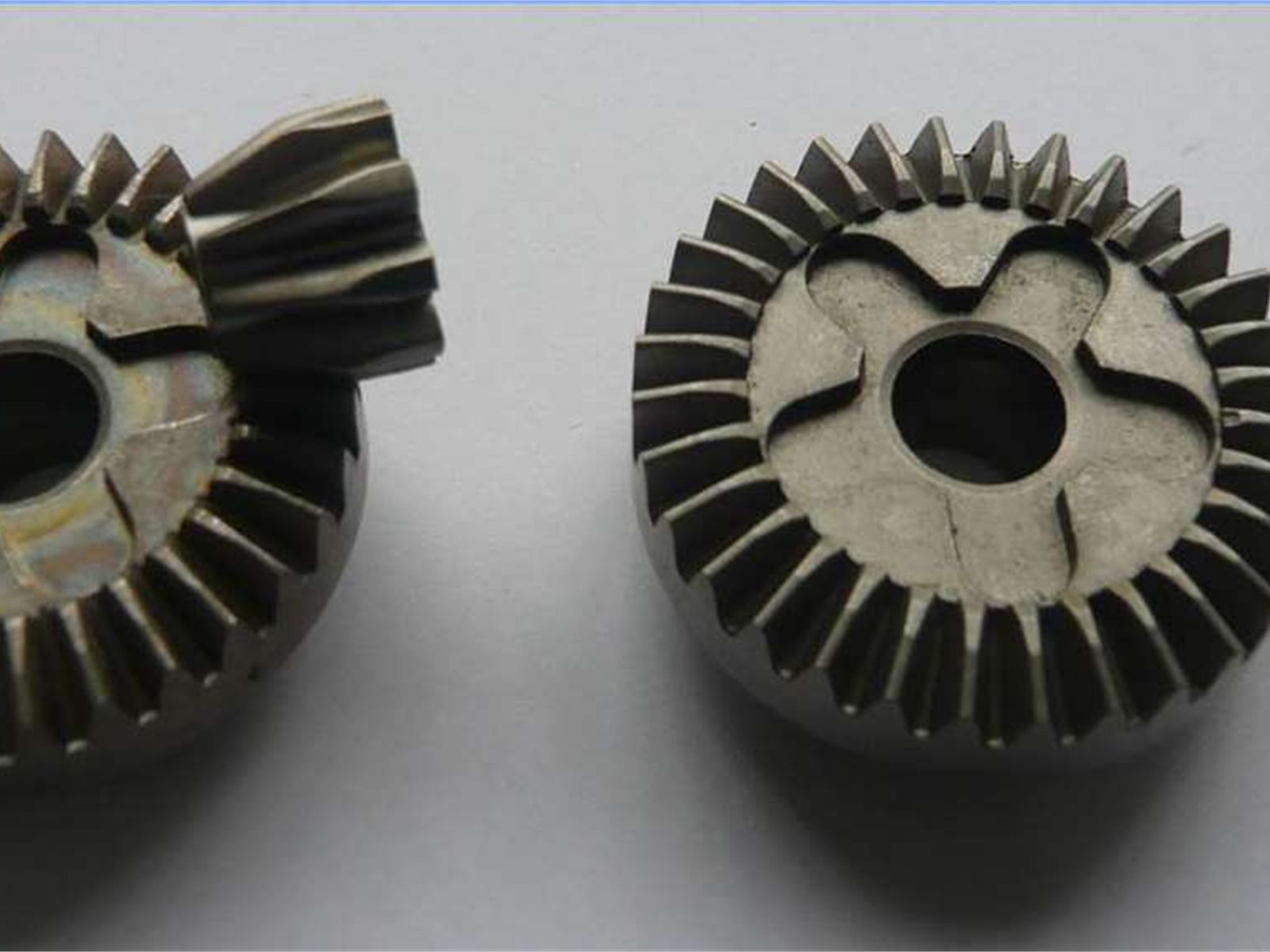

- Bevel Gears: For corner transmission applications
- Planetary Gears: Compact high-reduction gearboxes
- Custom Profiles: Modified tooth profiles for specific applications
Applications
Core Advantages
- Net-shape manufacturing reduces machining
- Consistent quality through automated pressing
- Cost-effective for medium to high volumes
Manufacturing Process Comparison
How powder metallurgy compares to CNC machining and casting for metal parts production.
| Characteristic | Powder Metallurgy | CNC Machining | Casting |
|---|---|---|---|
| Material Utilization | 95-97% | 50-70% | 70-80% |
| Geometric Complexity | High | Medium | Low-Medium |
| Dimensional Tolerance | +/-0.1-0.3% | +/-0.01-0.1% | +/-0.5-1% |
| Surface Finish (Ra) | 0.8-3.2 um | 0.4-1.6 um | 3.2-12.5 um |
| Cost (High Volume) | Low | High | Medium |
| Cost (Low Volume) | Medium-High* | Medium | High** |
| Lead Time | 2-6 weeks | 1-4 weeks | 4-8 weeks |
| MOQ | 1,000+ | 1+ | 500+ |
| Material Range | Limited | Wide | Wide |
| Mechanical Properties | 90-95% wrought | 100% wrought | 80-90% wrought |
* PM includes tooling cost amortization. Break-even typically at 800-1,200 pieces.
** Casting requires pattern or die costs and has higher setup costs.
Iron-Based Material Standards
Standard MPIF material grades we work with.
| Grade | Composition | Density (g/cm3) | Hardness | Application |
|---|---|---|---|---|
| F-0000 | Pure Iron | 6.0-6.2 | 40-60 HRB | Soft Magnetic Parts |
| F-0005 | Fe-0.5C | 6.2-6.4 | 60-80 HRB | Structural Parts |
| F-0008 | Fe-0.8C | 6.4-6.6 | 70-90 HRB | Gears |
| FC-0205 | Fe-2Cu-0.5C | 6.4-6.6 | 70-90 HRB | Structural Parts |
| FC-0208 | Fe-2Cu-0.8C | 6.5-6.7 | 80-100 HRB | High-Strength Parts |
| FN-0205 | Fe-2Ni-0.5C | 6.5-6.7 | 70-90 HRB | Toughness-Required Parts |
Need detailed material specifications? View our complete material guide with stainless steel, nickel steel, and copper-infiltrated grades.Surface treatments also available.
Custom Development Process
From initial inquiry to mass production, our streamlined process ensures quality and efficiency.
Requirement Analysis
Technical communication, application analysis
DFM & Quoting
Design optimization, tooling cost estimation
Tooling Development
Mold design, first article trial
Sample Approval
Sample testing, PPAP documentation
Mass Production
SPC-controlled production, JIT delivery
Related Resources
Use these internal links to keep moving through the most relevant guides, service pages, and technical references for this topic.
Structural PM Parts

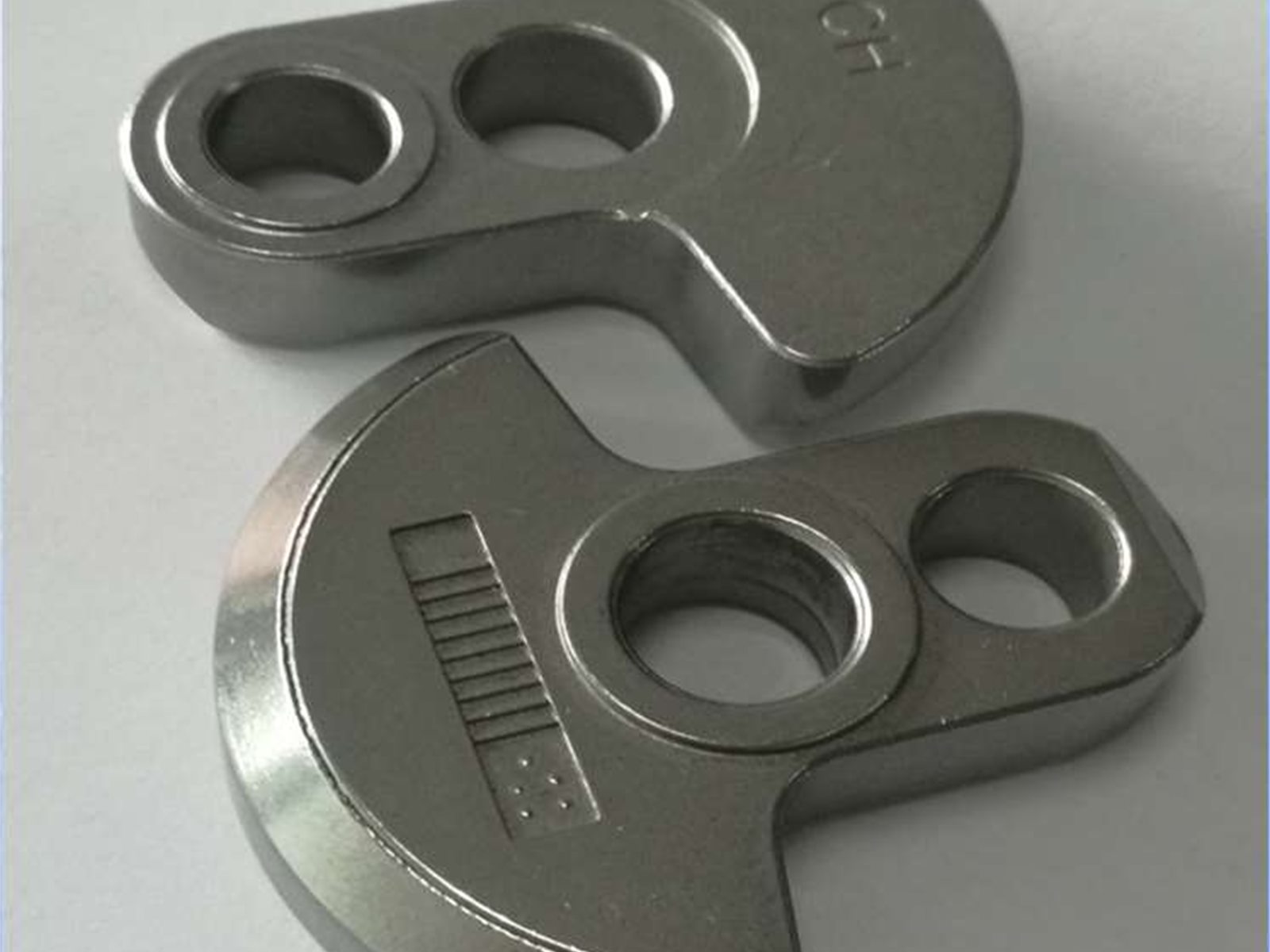

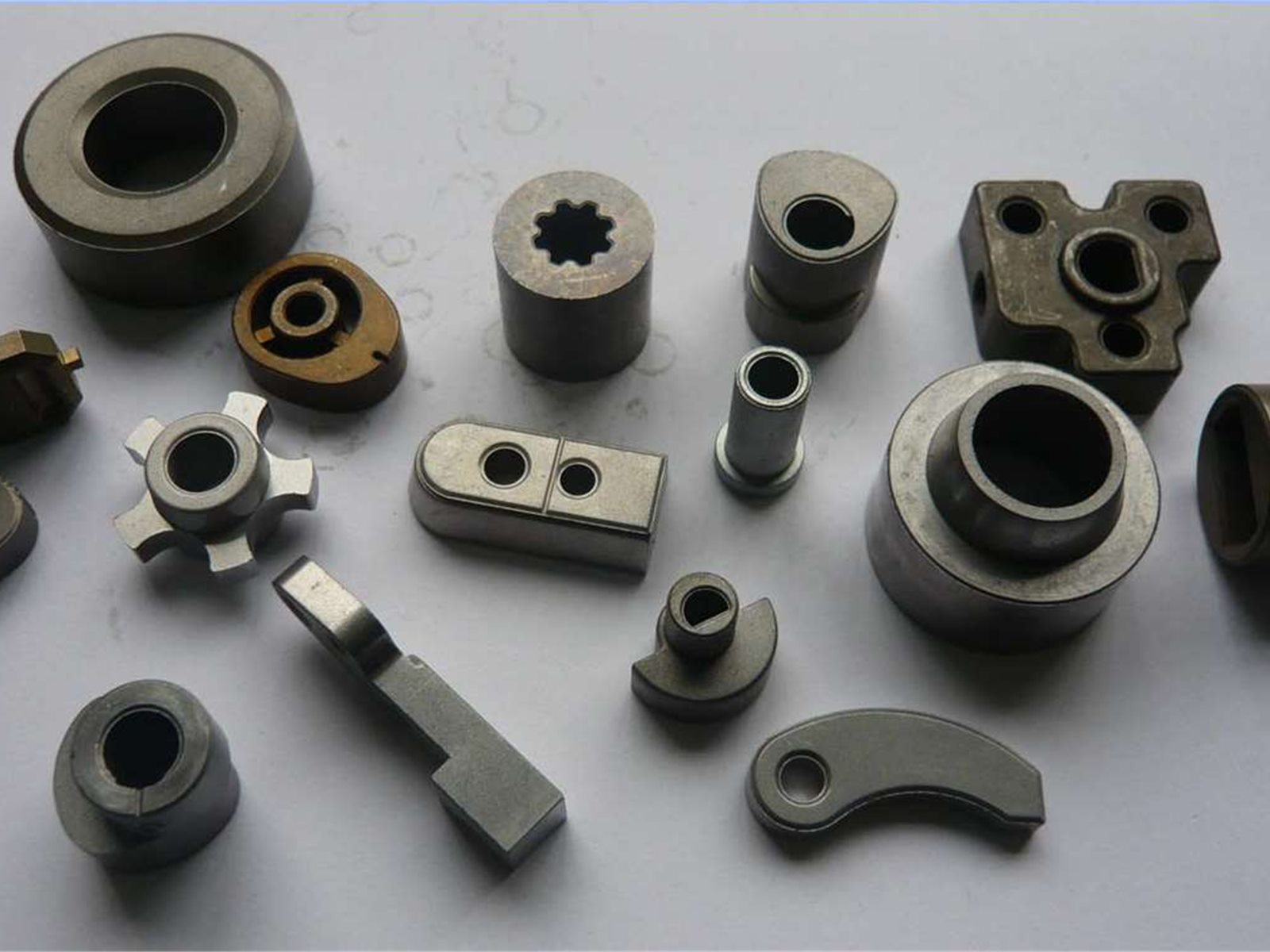

Review sintered structural components for brackets, hubs, carriers, cams, and high-volume assemblies.
Soft Magnetic Components
Compare PM soft magnetic components for motors, sensors, actuators, and electromagnetic assemblies.
Oil-Impregnated Bearings
Explore self-lubricating bearing use cases, material options, and RFQ notes for porous PM bearings.
Pump Components

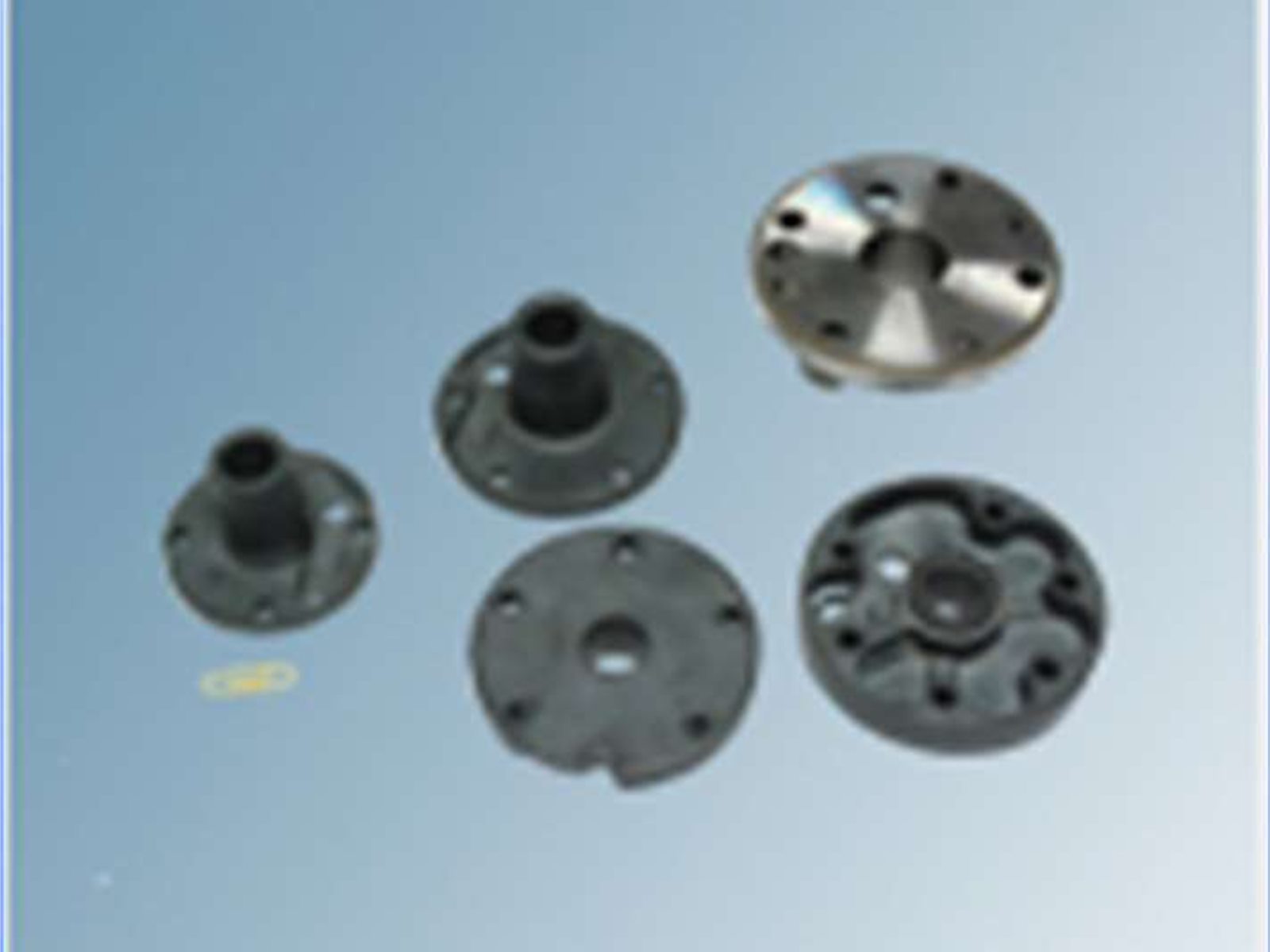

Explore rotors, valve plates, and structural pump components suited to repeat PM production.
