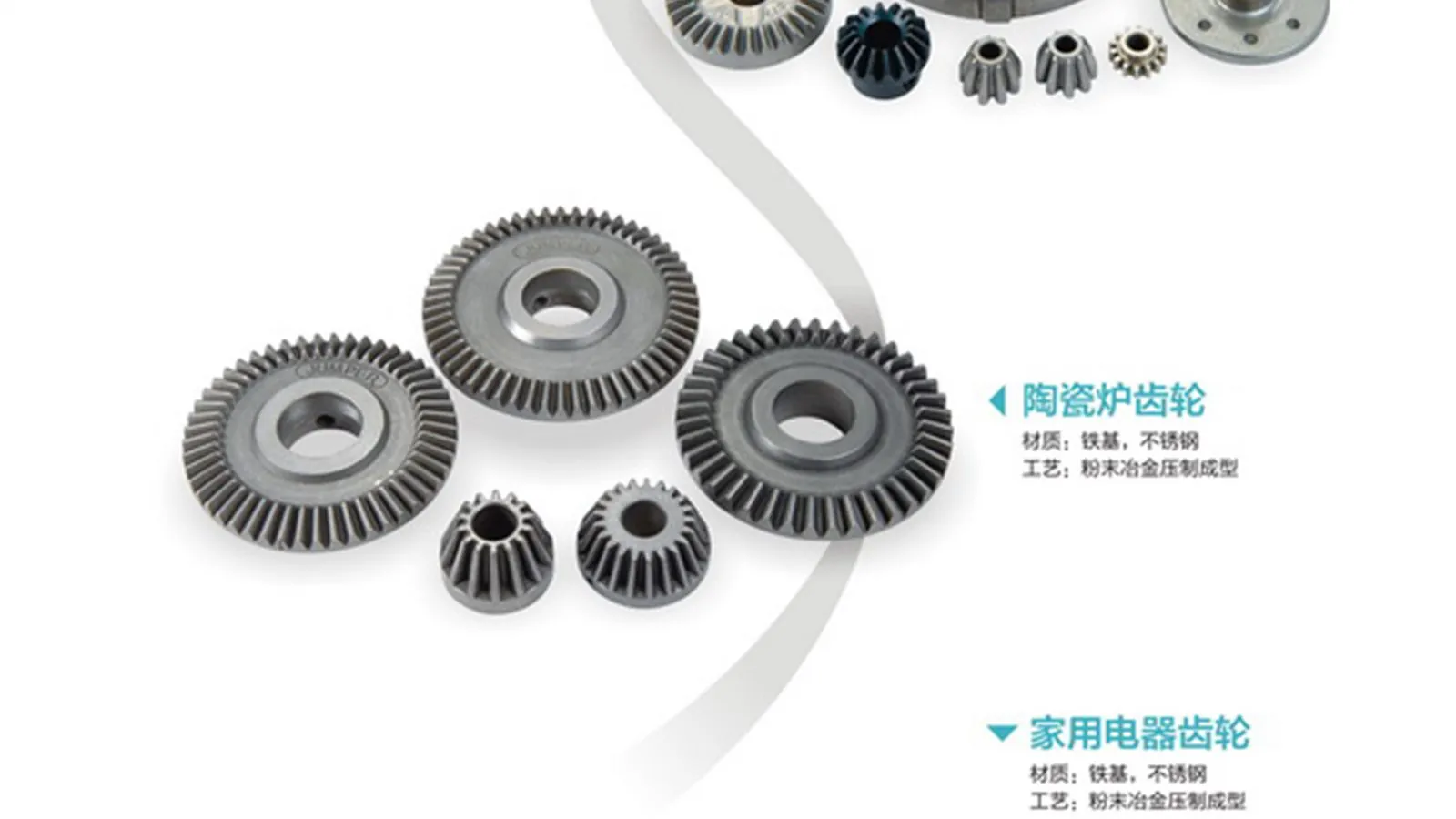

GB9 Gear Precision: Premium Standard for Powder Metallurgy Gears

Introduction

Picture this: a power tool running at 8,000 RPM with a gear that sounds like a coffee grinder. Now imagine the same tool—quieter, smoother, lasting twice as long. The difference? Two precision grades.

In powder metallurgy, gear precision isn't just a spec sheet number. It's the difference between a gear that whines under load and one that delivers smooth, reliable power for 1,000+ hours. GB9 precision represents the premium tier of PM gears—and understanding what it means can help you choose the right manufacturing route for demanding applications.

This guide explains what GB9 precision is, how it compares to standard grades, and how powder metallurgy achieves automotive-grade gear quality without the cost of fully machined parts.

Understanding Gear Precision Standards

The GB/T 10095 gear precision standard is equivalent to ISO 1328, the international benchmark for gear quality. The standard divides precision into 13 grades, with lower numbers representing tighter tolerances:

For powder metallurgy gears, GB9 sits at the sweet spot: high enough for demanding automotive and power tool applications, yet achievable with well-controlled PM processes and tooling. If you want the broader application context, see our powder metallurgy gears page.

GB9 vs GB11: What Two Grades Actually Mean

Here's where it gets real. GB9 is two grades higher than GB11, which means tolerance bands are roughly 50% tighter across all critical parameters. Let's look at the actual numbers for a typical 50mm pitch diameter gear:

Note: Values shown are approximate for a module 1.5 gear with 50mm reference diameter. Exact tolerances vary by module, diameter, and face width per GB/T 10095-2008.

What this means in practice:

• GB9 gears mesh more smoothly with less backlash variation
• Tooth-to-tooth contact is more consistent across the full face width
• Load distribution is more even, reducing peak stress and extending life

Why Gear Precision Matters: Real Performance Impact

When you move from GB11 to GB9, you're not just buying tighter tolerances—you're buying better performance across three critical areas:

1. Noise and Vibration Control

Tighter tooth-to-tooth consistency means smoother meshing and less audible gear noise.

Measured noise levels:

• GB9 gears: Operating noise < 75 dB(A) at rated speed
• GB11 gears: Operating noise typically > 85 dB(A)

That 10dB reduction is perceived as roughly 50% quieter to the human ear. For consumer products like power tools, this difference is often the line between "acceptable" and "premium."

2. Service Life and Reliability

When gear errors are tighter, tooth load distribution is more even. That means less peak stress, less micropitting, and longer fatigue life.

Observed life performance:

• GB9 gears: Service life typically 500–1,000 hours under normal operating conditions
• GB11 gears: Service life typically 200–500 hours

For products with warranty exposure, this 2x to 4x life improvement often justifies the investment in better tooling and process control.

3. Transmission Efficiency

Precision control of tooth geometry and backlash translates directly into power loss reduction.

Measured efficiency:

• GB9 gears: Mesh efficiency > 98% (less than 2% power loss per stage)
• GB11 gears: Mesh efficiency approximately 95–97%

In multi-stage gearboxes, this efficiency gain compounds. A three-stage GB9 gearbox can deliver 3–5% more output power than the same design built to GB11—which matters in battery-powered tools and energy-sensitive applications.

Visual note: In production, we would include a comparison chart showing noise, life, and efficiency side-by-side for GB9 vs GB11.

How PM Gears Achieve GB9 Precision

Powder metallurgy gears face three fundamental challenges when targeting high precision. Here's how modern PM processes overcome each one:

Challenge 1: Managing Sintering Shrinkage

The Problem: PM parts shrink by 1.0–2.0% linearly during sintering as powder particles bond and densify. If you design a die for a 50mm gear and just press it, you'll get a 49mm gear after sintering—completely out of spec.

The Solution:

1. Shrinkage prediction modeling: Use professional gear design software like KISSsoft to model both radial shrinkage and tooth thickness change based on material, density target, and sintering cycle. Our separate powder metallurgy gears page explains this in more detail.
2. Compensated die geometry: Machine the die cavity oversized by the predicted shrinkage so the final sintered part hits target dimensions. This requires precision CNC and iterative validation, often combined with a strong DFM review before release.
3. Process validation: Run shrinkage trials with real material and sintering profiles, then fine-tune die geometry based on actual measured results—not theoretical values alone.

Result: With proper compensation and control, PM gears can hold pitch diameter within ±0.05mm and tooth thickness within specification.

Challenge 2: Controlling Material Uniformity

The Problem: PM materials contain 10–15% controlled porosity, which can cause local density variation and uneven hardness if blending or pressing isn't tightly controlled.

The Solution:

1. High-quality powder selection: Use atomized powders with tight particle size distribution and consistent chemistry. Cheap powder creates inconsistent properties.
2. Optimized density distribution: Design die tooling with multi-action pressing to equalize density across complex gear geometries. Single-action presses often create density gradients that show up as hardness variation.
3. Sintering atmosphere control: Maintain strict hydrogen or endothermic atmosphere control to prevent localized oxidation or decarburization that would affect surface hardness consistency.

Result: With proper powder handling and process discipline, PM gears can achieve ±5 HRB hardness uniformity across the full tooth face.

Challenge 3: Maintaining Die Precision Over Volume Production

The Problem: In high-volume production (50,000+ parts per die), punch and die surfaces wear from repeated compaction cycles. As wear progresses, tooth form degrades and tolerances drift.

The Solution:

1. Premium die materials: Use carbide punches or powder metallurgy high-speed steel (PM-HSS) with hardness above HRC 60 to resist abrasive wear.
2. PVD surface coating: Apply TiAlN or CrN coatings to further reduce friction and extend die life by 2x to 3x.
3. Regular inspection and maintenance: Check critical die dimensions at scheduled intervals (e.g., every 10,000 cycles) and refurbish or replace punches before dimensional drift exceeds tolerance limits.

Result: Well-maintained tooling can produce 100,000+ parts while staying within GB9 precision windows.

Our Precision Assurance Measures

1. Design Phase

• Use KISSsoft software for gear design
• Tooth profile modification optimization
• Finite element analysis for strength verification

2. Die Manufacturing

• CNC machining center precision machining
• Gear measuring center for die precision inspection
• Die hardness HRC60+

3. Production Control

• Online pressing density monitoring
• Automatic sintering temperature curve control
• 100% dimensional inspection (critical dimensions)

4. Sizing Process

For gears requiring particularly high precision, we offer sizing services:

• Post-sizing precision up to IT6-7 grade
• Surface roughness Ra 0.8-1.6um
• Significantly improved tooth profile precision

Real-World Application Cases

Case Study 1: 1000 N·m Impact Wrench—Surviving Extreme Shock Loads

The Challenge:

A power tool manufacturer approached us with a brutal requirement: planetary gears for a 1,000 N·m cordless impact wrench. The application involved:

• Peak torque loads exceeding 1,200 N·m during impact cycles
• Target service life: minimum 500 hours (roughly 150,000 impact events)
• Precision requirement: GB9 to ensure smooth planetary action
• Cost constraint: needed to be competitive with investment-cast alternatives

Why This Was Difficult:

Impact wrenches subject gears to shock loading that's much harder on tooth surfaces than steady torque. Lower-precision gears would show premature micropitting and eventually tooth breakage under this cyclic abuse.

Our Solution:

• Material: FC-0508 (copper steel, 0.5% carbon) with heat treatment to achieve surface hardness of 85–90 HRB
• Gear design: KISSsoft-optimized tooth profile with slight tip relief to reduce impact stress concentration
• Die compensation: Shrinkage trials validated 1.4% radial compensation for this specific alloy
• Quality gate: 100% gear measuring center inspection on first 500 parts, then statistical sampling

The Result:

After rigorous bench testing and field trials:

• Gears met GB9 precision consistently across production batches
• Service life testing showed 600+ hours before first signs of wear—20% over target
• Customer reported zero field failures in first year of production
• Unit cost came in 35% lower than the machined alternative they had been quoting

"We were skeptical that PM could handle this kind of abuse, but the data spoke for itself. These gears outperformed our expectations."

— Engineering Manager, Power Tool Division

Case Study 2: Stihl Pole Saw—Quiet Operation in Professional Tools

The Challenge:

A leading outdoor power equipment brand needed gears for a professional-grade pole saw with strict requirements:

• Noise limit: < 70 dB(A) during operation (professional users demand quieter tools)
• Precision: GB9 to ensure smooth meshing and minimal vibration
• Durability: Must survive 300+ hours of field use in dusty, high-vibration environments
• Cost-effective production: Annual volume justified tooling investment

Why Low Noise Mattered:

Professional landscapers use pole saws for hours every day. Excessive gear noise causes operator fatigue and negatively impacts brand perception. Standard GB11 gears would have produced unacceptable whine at operating speed.

Our Solution:

• Material: FC-0208 (copper steel, 0.2% carbon) for balance of strength and machinability
• Tooth profile: Optimized tooth modification to reduce meshing impact
• Surface treatment: Steam treatment to close surface porosity and improve wear resistance
• Quality assurance: Gear mesh testing on production samples to validate noise performance

The Result:

• Operating noise measured at 68 dB(A)—well under the 70 dB target
• GB9 precision achieved on all critical parameters (pitch, profile, helix)
• Customer approved production tooling after first article inspection
• Program now in third year of stable production with zero quality complaints

"The gear noise was barely audible over the motor. That's exactly what we needed for our premium product line."

— Product Development Lead

Our Precision Inspection and Validation Capability

Achieving GB9 precision requires more than good tooling—it requires measurement systems capable of validating that you're actually hitting the spec. We maintain a full suite of gear inspection equipment:

Primary Inspection Equipment

• Gear Measuring Center (Klingelnberg P40): Inspects all four critical parameters—tooth profile deviation, helix deviation, pitch variation, and radial runout—with ±2 μm measurement accuracy
• Coordinate Measuring Machine (CMM): Verifies gearbox assembly dimensions, bore concentricity, and face flatness to ensure proper meshing geometry
• Gear Mesh Tester: Simulates actual meshing conditions under light load to detect tooth contact pattern issues that static measurements might miss
• Optical Profile Projector: Enables fast visual inspection of tooth profile form for incoming inspection and quick process checks

Quality Gates in Production

For GB9 programs, we typically implement:

1. First article inspection: 100% dimensional verification on first 100–500 parts from new tooling
2. In-process monitoring: Statistical sampling (typically 1 in 50 parts) during production runs
3. Pre-shipment audit: Final batch inspection before customer delivery

This multi-stage approach ensures that precision is validated—not assumed—at every step.

Conclusion: When GB9 Precision Makes Sense

GB9 represents the premium tier of powder metallurgy gear precision—tight enough for demanding automotive and power tool applications, yet achievable without the full cost of hobbed or ground gears.

Choose GB9 when:

• Operating noise and smoothness affect user experience or product perception
• Service life targets exceed 500 hours under normal loading
• You need better-than-standard precision but can't justify fully machined gears
• Annual volume is high enough to absorb tooling investment (typically 10,000+ units/year)

GB11 may be sufficient when:

• Application is low-speed or low-precision (conveyors, low-RPM actuators)
• Noise is not a critical factor
• Cost pressure is extreme and life requirements are modest

With KISSsoft design validation, shrinkage-compensated tooling, and strict process control, PM gears can reliably deliver GB9 performance at a fraction of the cost of traditional gear cutting.
