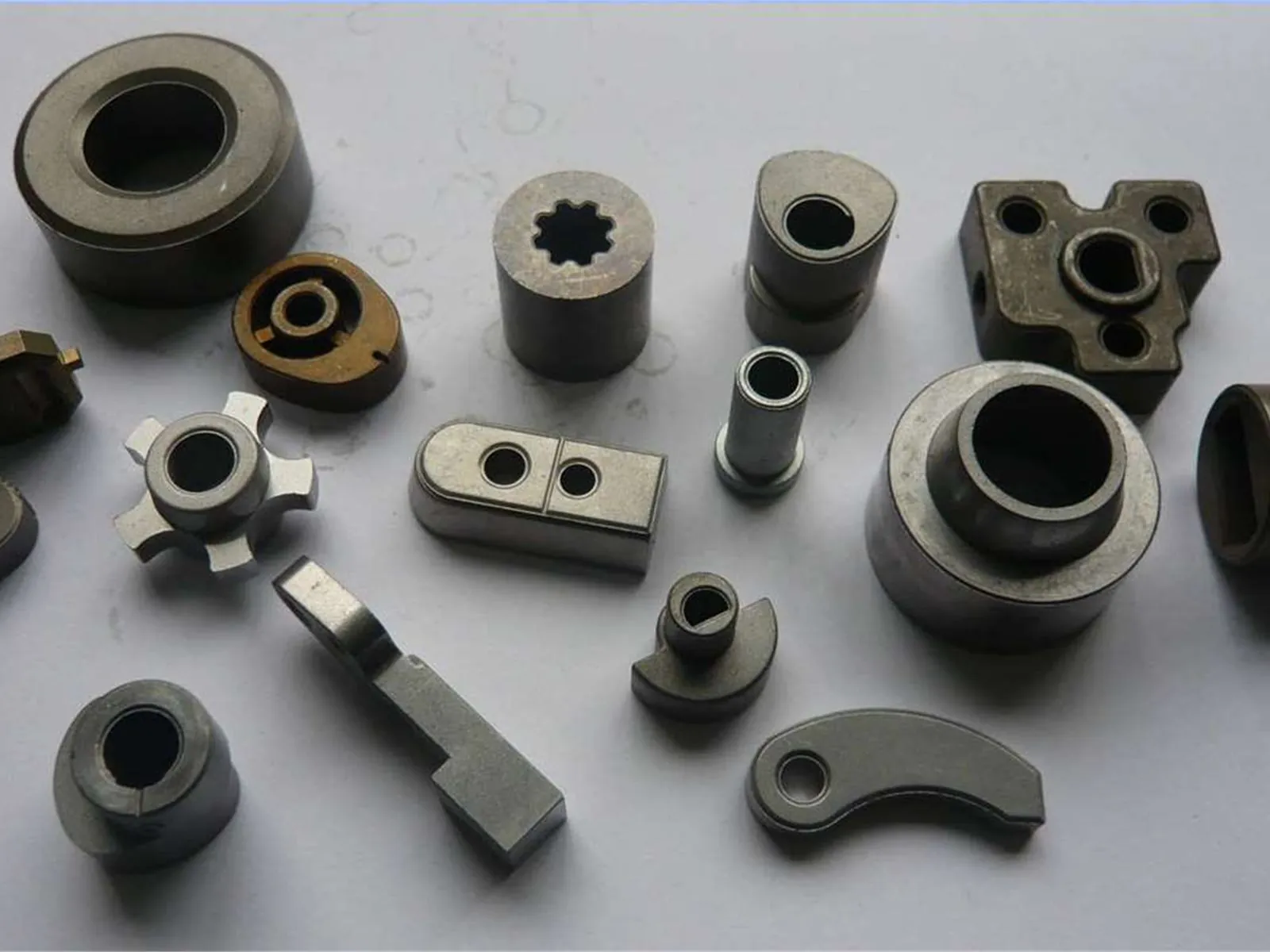

GuidePM defects
Table of Contents
1. Excessive Porosity
Description
Pores (voids) that are larger or more numerous than specified, resulting in reduced mechanical properties and potential leak paths.
Identification Methods
- Visual Inspection: Surface pitting, spongy appearance
- Density Measurement: Measured density significantly below target (typically <95% of specification)
- Microscopy: Large interconnected voids visible in cross-section
Common Root Causes
| Cause | Explanation |
|---|---|
| Low compaction pressure | Insufficient green density (typically <6.0 g/cm3 for iron-based materials) |
| Poor powder flowability | Powder doesn't fill die cavity uniformly |
| Inadequate sintering | Incomplete densification due to insufficient time or temperature |
| Contaminated powder | Oxides or moisture prevent proper particle bonding |
| Lubricant residue | Incomplete removal of compaction lubricant |
Prevention Strategies
- Increase compaction pressure within equipment limits (typically 550-700 MPa for iron)
- Use flow-enhancing additives in powder blend
- Optimize sintering profile (typically 1120-1150 deg C, 20-30 min for iron-based materials)
- Store powder in controlled environment (typically <30% relative humidity)
- Ensure complete lubricant burnout in pre-sinter zone (400-600 deg C)
Corrective Actions
- Re-sinter at elevated temperature (typically +20-30 deg C increase)
- Apply sizing or coining operation to close surface porosity
- Consider copper infiltration for critical applications requiring leak-tightness
- Evaluate Hot Isostatic Pressing (HIP) for near-full density requirements
2. Cracking
Description
Fractures or cracks in parts, ranging from hairline surface cracks to complete breakage. Cracks can occur at different stages of the PM process.
Crack Types
Green Cracks: Form during compaction or ejection Sintering Cracks: Form during heating or cooling cycles Quench Cracks: Form during heat treatment (quenching operations)
Identification Methods
- Visual Inspection: Surface cracks often visible near corners, holes, or section changes
- Dye Penetrant Testing: Reveals hairline cracks not visible to naked eye
- Microscopy: Examination shows intergranular or transgranular fracture paths
Root Causes by Stage
Green Cracking Causes
| Cause | Explanation |
|---|---|
| Excessive compaction pressure | Over-compaction leading to elastic springback-induced cracking |
| Insufficient lubricant | High ejection friction causing surface tears |
| Sharp corners/thin walls | Geometric stress concentrators |
| Density gradient | Non-uniform compaction creating internal stresses |
Sintering Cracking Causes
| Cause | Explanation |
|---|---|
| Rapid heating/cooling rates | Thermal shock (particularly at rates >500 deg C/hr) |
| Large part dimensions | Significant thermal gradients within part |
| Liquid phase sintering effects | Transient liquid phase can cause localized distortion |
Quench Cracking Causes (Heat Treatment)
| Cause | Explanation |
|---|---|
| Excessive quench severity | Oil or water quench too aggressive for PM microstructure |
| Sharp section transitions | Stress concentration during phase transformation |
| High carbon content | Volume change during martensite formation |
Prevention Strategies
Design Modifications:
- Incorporate draft angles (1-3°) to reduce ejection friction
- Use minimum corner radii of R0.5mm (R0.8mm preferred for heat-treated parts)
- Maintain wall thickness >2mm
- Limit length-to-diameter ratio to <3:1
Process Adjustments:
- Reduce compaction pressure if within acceptable density range (stay below 700 MPa for typical iron alloys)
- Increase lubricant content (0.8-1.2% typical range)
- Slow heating rate through critical zones (<300 deg C/hr in 400-800 deg C range)
- Use controlled cooling rather than rapid quenching
Heat Treatment Considerations:
- Prefer oil quench over water quench for PM parts
- Implement preheat stage before austenitizing (650-750 deg C)
- Temper immediately after quenching (typically within 1 hour)
Corrective Actions
- Redesign part geometry to eliminate stress concentrators
- Reduce thermal gradients through slower furnace speed
- Consider press-quench as less severe alternative to oil quench
- Evaluate salt bath quenching for more uniform cooling
3. Delamination (Lamination Cracks)
Description
Horizontal cracks oriented parallel to the compaction direction, causing part separation into distinct layers.
Identification Methods
- Visual: Horizontal crack patterns, often at part mid-height
- Fracture Testing: Part breaks cleanly along delamination plane
- Microscopy: Lack of particle bonding across crack interface
Root Causes
| Cause | Explanation |
|---|---|
| Powder segregation | Separation of fine and coarse particles in die cavity |
| Incomplete powder fill | Air pockets between successive powder layers |
| Excessive lubricant | Lubricant layer preventing particle bonding |
| Contamination | Dirt or oxide layers on powder surface |
| Die wall friction effects | Powder shearing during compaction creating weak planes |
Prevention Strategies
- Ensure thorough powder mixing before die filling
- Implement vacuum or vibration-assisted die filling
- Optimize lubricant type and content (typically 0.6-1.0%)
- Maintain clean equipment and powder handling systems
- Apply die wall lubrication to reduce internal powder lubricant needs
- Avoid reusing scrap powder without proper reprocessing and blending
Corrective Actions
- Change powder supplier or lot if problem persists
- Implement powder quality testing (apparent density, flow rate measurements)
- Redesign tooling to improve powder flow characteristics
4. Dimensional Variation
Description
Parts exhibiting dimensions outside specified tolerances, which for PM are typically +/-0.1-0.3mm as-sintered.
Identification Methods
- Measurement: Micrometer or CMM inspection showing out-of-specification dimensions
- Statistical Analysis: High standard deviation across production lots
Root Causes
| Cause | Explanation |
|---|---|
| Density gradient | Non-uniform compaction resulting in differential shrinkage |
| Sintering temperature variation | Temperature non-uniformity within furnace hot zone |
| Powder lot variation | Different powder characteristics affecting sintering behavior |
| Tooling wear | Progressive dimensional changes as dies and punches wear |
| Elastic springback variation | Inconsistent recovery after compaction |
Prevention Through Process Control
Compaction Control:
- Monitor and control pressure within +/-5% tolerance
- Regular press calibration and maintenance
Sintering Control:
- Maintain sintering temperature within +/-10 deg C
- Use single powder lot for critical production runs
- Implement Statistical Process Control (SPC)
Tooling Management:
- Regular inspection and measurement of tooling
- Scheduled maintenance and refurbishment
Corrective Actions
Sizing/Coining Operations:
- Improves typical tolerance to +/-0.05mm
- Re-strikes part in precision dies
Machining Operations:
- Reserve for ultra-precision features where required
- Add appropriate machining allowances (+0.1-0.2mm)
Design Optimization:
- Design for uniform wall thickness to minimize distortion
- Identify critical dimensions requiring secondary operations
5. Surface Defects
Description
Cosmetic or functional surface flaws affecting appearance or performance.
Common Surface Defect Types
Pitting / Orange Peel
- Cause: Large pores opening at surface
- Prevention: Achieve higher green density, consider copper infiltration
Rust / Oxidation
- Cause: Inadequate atmosphere control during sintering
- Prevention: Proper reducing atmosphere (hydrogen, nitrogen-hydrogen blend, or endothermic gas)
Surface Cracks (Crazing)
- Cause: Rapid cooling creating thermal stress
- Prevention: Controlled cooling rate (<200 deg C/hr below 600 deg C)
Blisters
- Cause: Gas entrapment from incomplete lubricant removal
- Prevention: Slower heating through dewaxing zone (400-600 deg C)
6. Weak Mechanical Properties
Description
Tensile strength, hardness, or impact resistance below specification requirements.
Root Causes and Effects
| Cause | Effect on Properties |
|---|---|
| Low sintered density | Directly reduces strength proportionally |
| Inadequate sintering | Incomplete neck formation between particles |
| Improper heat treatment | Incorrect hardness or microstructure |
| Incorrect material selection | Base alloy doesn't meet application requirements |
Prevention Strategies
- Specify appropriate density for structural applications (typically 6.8-7.2 g/cm3)
- Validate sintering profile (time-temperature-atmosphere combination)
- Follow proper heat treatment procedures including austenitizing, quenching, and tempering
- Select material grade appropriate for required properties (e.g., FN-0408 for high strength)
Corrective Actions
- Re-sinter if parts are under-sintered
- Apply appropriate heat treatment (carburizing, through-hardening)
- Increase density through sizing/coining operations
- Change to higher-performance alloy grade if current material insufficient
7. Distortion / Warpage
Description
Deviation of part shape from design intent, including bending, twisting, or sagging.
Root Causes
| Cause | Explanation |
|---|---|
| Density gradient | Non-uniform shrinkage during sintering |
| Asymmetric part design | Uneven mass distribution |
| Rapid thermal cycling | Thermal gradients causing differential expansion |
| Gravity sag | Part deformation under own weight at high temperature |
Prevention Strategies
- Design for geometric symmetry and balanced wall thickness
- Use sintering supports or fixtures for complex geometries
- Implement slow heating and cooling rates
- Orient parts properly on sintering trays
Corrective Actions
- Apply straightening operation (hot coining)
- Redesign for more uniform cross-section
- Add temporary support features (removable post-sintering)
8. Decarburization / Carburization
Description
Unintended change in carbon content during sintering, affecting hardenability and final properties.
Identification
- Decarburization: Surface softer than core, inadequate hardening response
- Carburization: Unintended carbon pickup, potential embrittlement
Root Causes
| Defect Type | Typical Cause |
|---|---|
| Decarburization | Oxidizing atmosphere conditions (air leaks, insufficient carbon potential) |
| Carburization | Excessive carbon in atmosphere (overly rich endothermic gas) |
Prevention Strategies
- Control atmosphere carbon potential (typically 0.4-0.8% for carbon steels)
- Monitor dew point (<-20 deg C for reducing atmospheres)
- Maintain furnace seals to prevent air infiltration
- Conduct regular atmosphere analysis (CO, CO2, and H2 content)
Corrective Actions
- Adjust atmosphere composition to achieve target carbon potential
- Re-carburize decarburized parts if subsequent heat treatment planned
- Surface machining to remove affected layer if within design allowances
Quality Control Checkpoints
Incoming Powder Inspection
- Apparent density (ASTM B212)
- Flow rate (ASTM B213)
- Particle size distribution analysis
- Chemical composition verification
Green Part Inspection (Post-Compaction)
- Green density measurement (ASTM B331)
- Green strength handling test
- Pre-sinter dimensional check
Sintered Part Inspection
- Sintered density (ASTM B331, Archimedes method)
- Dimensional accuracy verification
- Hardness testing (ASTM E18 - Rockwell method)
- Tensile strength testing (ASTM B528)
- Microstructural examination (metallography)
Final Inspection
- Visual inspection for cracks and surface defects
- Dimensional CMM inspection
- Functional testing appropriate to application
Get Expert PM Troubleshooting Support
SinterWorks provides technical support for PM quality issues:
- Failure analysis services (metallography, SEM examination)
- Process optimization consultation
- Material selection guidance
- Design for manufacturability review
Contact us for technical assistance with PM defect issues.
Summary: Key Prevention Principles
- Material Control: Use quality powder from qualified suppliers with consistent characteristics
- Process Control: Maintain tight control of compaction pressure and sintering parameters
- Design Optimization: Follow PM design guidelines for geometry, wall thickness, and radii
- Tooling Maintenance: Regular inspection and maintenance of compaction tooling
- Atmosphere Control: Proper furnace atmosphere composition and dew point control
- Statistical Monitoring: Implement SPC to detect trends before defects occur
Note: This guide provides general troubleshooting information based on common PM processing practices. Specific defect causes and solutions may vary depending on material, part geometry, and processing equipment. Always consult with materials specialists and conduct appropriate testing for critical applications.
Related Resources
Use these internal links to keep moving through the most relevant guides, service pages, and technical references for this topic.
Quality Inspection
See how density, hardness, dimensions, and metallography are checked when troubleshooting PM production issues.
DFM Guide
Review geometry and tolerance decisions that often prevent PM defects before tooling is cut.
Heat Treatment Guide
Compare quenching, tempering, and distortion considerations that often show up in PM defect analysis.
Request Technical Review
Send your defect photos, density data, or part drawing for a practical PM troubleshooting review.
