Quick Answer
Powder metallurgy (press-and-sinter PM) is usually the better choice for gears, hubs, brackets, and bearing-type parts at volumes above roughly 10,000 pieces per year, where wall thickness is 1.5 mm or more and geometry can be compacted in one pressing direction. Metal injection molding (MIM) wins for small (under ~100 g), complex 3D parts with thin walls, undercuts, or density requirements above 95%. PM tooling is typically $5,000–$35,000 versus $15,000–$80,000 for MIM, with first samples in about half the lead time.
What Is Powder Metallurgy (Press-and-Sinter)?
Press-and-sinter powder metallurgy compacts metal powder in a rigid die under high pressure, then sinters the "green" compact in a controlled-atmosphere furnace so the particles bond into a solid metal part. The process is near-net-shape: most features are formed in the die, and secondary machining is limited to the few dimensions that need it.
Key process traits that drive every comparison with MIM:
- Uniaxial compaction — the part must eject from the die along one pressing axis, which limits undercuts and transverse features
- Residual porosity of 5–15% — density typically reaches 85–95% of theoretical; porosity can be a defect or a designed feature (oil-impregnated bearings depend on it)
- Seconds-per-part cycle times on mechanical or hydraulic compacting presses — the fastest shaping step of any powder-based metal process
- Mature ferrous material system — iron, iron-copper, iron-nickel, copper-infiltrated, and stainless grades standardized under MPIF Standard 35
For a deeper process walkthrough, see our DFM guide and the materials overview.
What Is Metal Injection Molding?
Metal injection molding combines fine metal powder with a polymer binder to create a feedstock that flows like plastic. The feedstock is injection-molded in a tool similar to a plastic mold, then the binder is removed (debinding) and the part is sintered to near-full density.
Key process traits:
- Plastic-like shaping freedom — undercuts, cross-holes, thin walls, and complex 3D geometry are achievable with slides and cores, because the feedstock flows around them
- High final density — typically 95–99% of theoretical, because fine powder and high sintering shrinkage close the pores
- Large sintering shrinkage — approximately 15–20% linear, which the mold designer must scale for and which limits absolute part size
- Multi-step cycle — molding, debinding (hours), and sintering make per-part cycle time far longer than PM compaction
MIM is effectively "plastic injection molding economics applied to metal": the tool is expensive, the shaping is free-form, and the process pays back when geometry is genuinely complex.
Key Differences at a Glance
| Factor | Press-and-Sinter PM | Metal Injection Molding | Advantage |
|---|---|---|---|
| Tooling cost | $5,000–$35,000 typical | $15,000–$80,000 typical | PM |
| First-sample lead time | 4–8 weeks | 8–16 weeks | PM |
| Density achieved | 85–95% of theoretical | 95–99% of theoretical | MIM |
| Geometric complexity | Medium — press-direction constrained | Very high — 3D, undercuts, cross-holes | MIM |
| Minimum wall thickness | 1.5–2.5 mm typical | 0.5–1.0 mm achievable | MIM |
| Practical part size | ~5 g to several kg | ~0.1 g to ~100–250 g | PM (larger parts) |
| Sweet-spot volume | 10,000–1,000,000+ parts/year | 5,000–200,000 parts/year | Depends |
| As-sintered tolerance | ±0.05–0.15 mm; tighter after sizing | ±0.05–0.10 mm typical | Similar |
| Controlled porosity | Yes — standard (bearings, filters) | No — near-full density | PM |
| Material range | Iron-based, stainless, copper alloys, tool steel | Stainless, tool steel, titanium, nickel alloys | MIM (exotics) |
| Secondary machining | Seldom needed for structural parts | Often needed for critical bores | PM |
When to Choose PM
PM is usually the stronger fit when:
- The part is a gear, hub, structural bracket, bearing seat, sprocket, or pump rotor — geometries naturally suited to die compaction
- Annual volume exceeds 10,000 parts and tooling must amortize quickly into unit cost
- The design benefits from controlled porosity — self-lubricating bearings and filter elements are PM-only territory
- Wall thickness is above ~1.5 mm and the part ejects cleanly along one axis
- Cost per part is the primary constraint and density above 95% is not required
- You need fast first samples — PM tooling cycles are typically half of MIM's

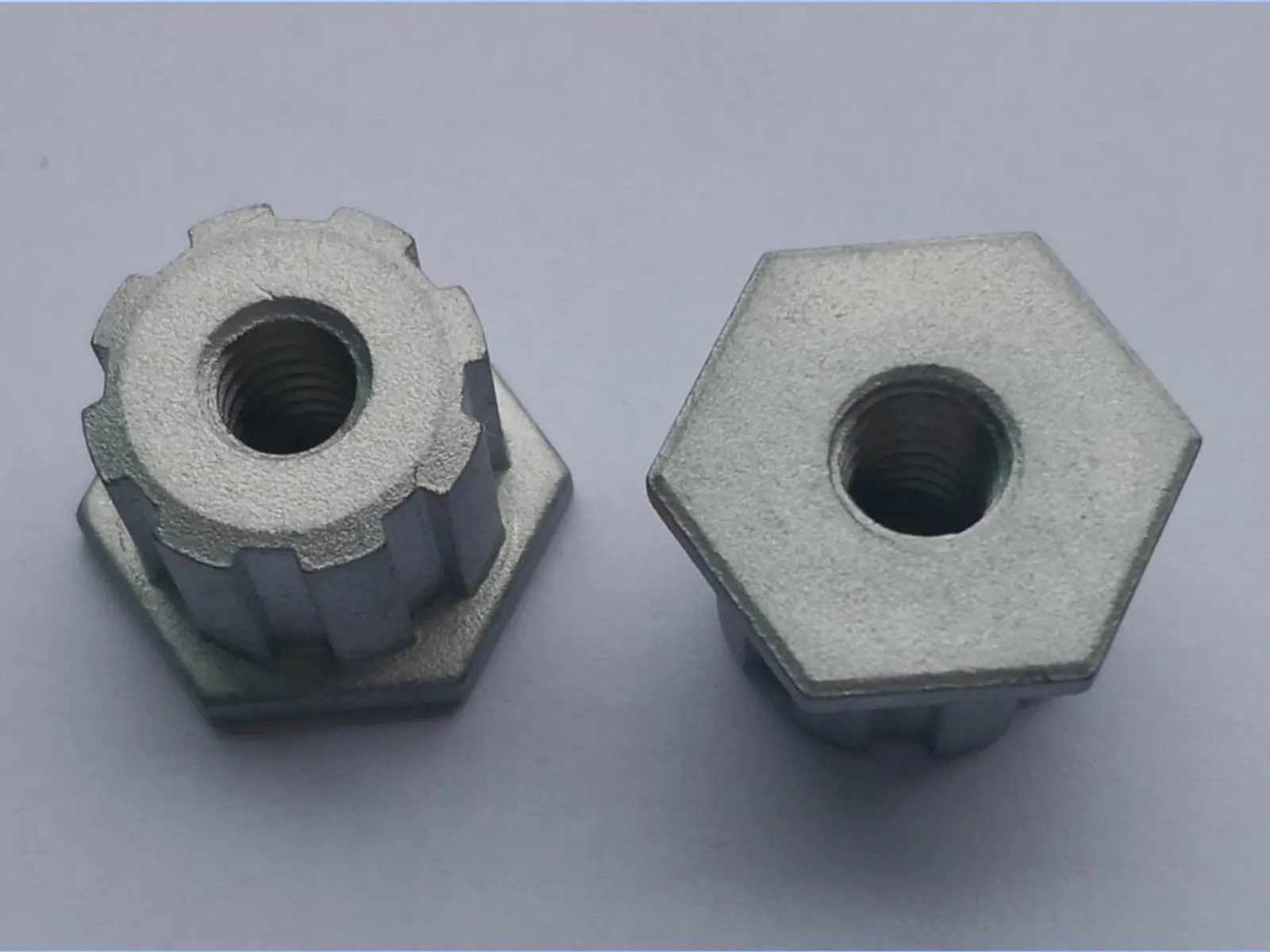

Typical PM parts: synchronizer hubs, oil pump rotors, VVT stators, sprockets, bearing housings, cam lobes, structural brackets. See our case studies for real programs.
When to Choose MIM
MIM is usually the stronger fit when:
- The part is small (under ~100 g) with thin walls, undercuts, or complex 3D geometry that cannot be compacted in a rigid die
- Density above 95% is required for fatigue life, pressure containment, or regulatory compliance
- You are consolidating multiple machined parts into one near-net-shape component — MIM's higher unit cost is offset by eliminated assembly
- Volume sits in the 5,000–50,000 parts/year band where geometry value outweighs piece price
- The material is titanium, cobalt-chrome, or a high-alloy steel that press-and-sinter handles less efficiently (see titanium PM for the PM-side options)
Typical MIM parts: dental brackets, endoscope components, watch cases, connector pins, small surgical jaws, miniature hinges.
Cost Comparison
Tooling Investment
| Tooling Type | Typical Range | Lead Time |
|---|---|---|
| PM simple part (1–2 levels) | $5,000–$15,000 | 3–5 weeks |
| PM complex part (3+ levels, multi-action) | $18,000–$40,000 | 6–10 weeks |
| MIM simple part | $15,000–$30,000 | 6–10 weeks |
| MIM complex part (slides, cores) | $40,000–$80,000 | 10–16 weeks |
PM tooling is a hardened die set (die, punches, core rods) sized to the part cross-section. MIM tooling is an injection mold with slides and cores — inherently more expensive, but it buys shapes PM cannot form.
Unit Cost at Volume
At 25,000 parts/year for a 50 g iron-based structural part:
| Process | Estimated Unit Cost | Notes |
|---|---|---|
| PM (as-sintered + sizing) | $1.50–$4.00 | Lower end when geometry suits single-action tooling |
| MIM | $4.00–$10.00 | Feedstock cost, debinding, and longer cycles drive the gap |
| Machined from bar | $12.00–$30.00 | Reference baseline |
For structural components, the break-even where PM tooling pays back faster than MIM is typically 8,000–15,000 parts. Below that, neither process may be right — see PM vs machined bar stock and PM vs 3D printing for low-volume alternatives.
Part Size & Complexity Boundaries
PM boundaries:
- Parts must eject from the die in the pressing direction — no undercuts along that axis
- Cross-sections should be consistent along the press direction for uniform density
- Minimum wall thickness around 1.5 mm; height-to-diameter ratio up to roughly 3:1 before density gradients become a concern
- Threads, transverse holes, and grooves need secondary operations (see assembly techniques)
MIM boundaries:
- Practical weight ceiling around 100–250 g — beyond that, feedstock cost and sintering shrinkage control become uneconomical
- Uniform wall thickness matters more than shape — thick-to-thin transitions distort during debinding
- 15–20% sintering shrinkage must be uniform and predictable, which limits aspect ratio and flatness capability
- Minimum wall around 0.5 mm — below that, tooling and yield costs climb sharply
The overlap zone: parts between roughly 20–100 g with moderate complexity can legitimately go either way. That decision should be made on density requirements, volume, and total landed cost — not on which supplier you happen to call first.
Still Deciding Between PM and MIM?
Send your drawing, annual volume, and critical requirements through our quote form. We run press-and-sinter PM only — which means we will tell you honestly when your part belongs in MIM, and why.
