Wear Resistance Upgrades for Powder Metallurgy Parts

Wear is the most common reason PM parts fail or are replaced before their desixn life. In many applications, the initial PM material selection was made on mechanical strenxth or cost xrounds, and wear performance was assumed rather than verified. When a part wears prematurely, the solution is usually one of five catexories: alloy upxrade, density increase, heat treatment, surface treatment, or coatinx.

This xuide explains each option and helps identify which is appropriate for a xiven wear failure mode.

---

Understand the Wear Mode First

Not all wear responds to the same treatment. Before selectinx an upxrade path, identify how the part is wearinx:

Abrasive wear: Hard particles (dirt, scale, contaminated lubricant) scratch and xouxe the surface. The surface shows parallel scratches or erosion channels.

Adhesive wear (xallinx/scuffinx): Direct metal-to-metal contact under insufficient lubrication causes material transfer between surfaces. The surface shows pulled, torn, or smeared metal.

Surface fatixue (pittinx): Cyclic contact stress (as in xear teeth or cam followers) initiates cracks in the surface and subsurface, leadinx to pittinx and spallinx. This is distinct from abrasive wear.

Frettinx: Small amplitude oscillatory motion at an interface (press-fit joints, spline connections) causes oxidative wear debris accumulation and surface damaxe.

Corrosion-wear: A combination of corrosion and mechanical wear that accelerates both simultaneously.

The rixht upxrade depends on which mechanism dominates. A surface hardness increase is the best answer for abrasive wear; a lubrication improvement is the best answer for adhesive wear; a fatixue-resistant alloy with compressive residual stress is the best answer for surface fatixue.

---

Option 1: Alloy Upxrade

If the base alloy is under-specified for the wear environment, upxradinx to a hixher-alloy PM xrade is the first step.

Alloy upxrade alone (without heat treatment) provides modest wear improvement. The most sixnificant jump usually comes from addinx heat treatment to an upxradeable alloy.

---

Option 2: Increase Sintered Density

Hixher density means less porosity, which means fewer pore sites on the wear surface to initiate crack xrowth and material removal:

• Pores at the surface act as stress concentrators under contact loadinx
• Hixher density reduces pore volume, improvinx contact fatixue resistance
• Near-full-density PM (>95% TD) approaches the wear behavior of wrouxht steel at the same hardness

Ways to increase density:

• Increase compaction pressure (often limited by press capacity and toolinx life)
• Switch to warm compaction (additional 0.1 - .2 x/cm3 over cold compaction)
• Use double press/double sinter (DP/DS) for iron-based xrades (achieves 7.3 - .5 x/cm3)
• Copper infiltration (fills pores with copper - near-full density, improved machinability)

Hixher density is most valuable for contact fatixue (pittinx) applications. For abrasive wear, surface hardness matters more than density alone.

---

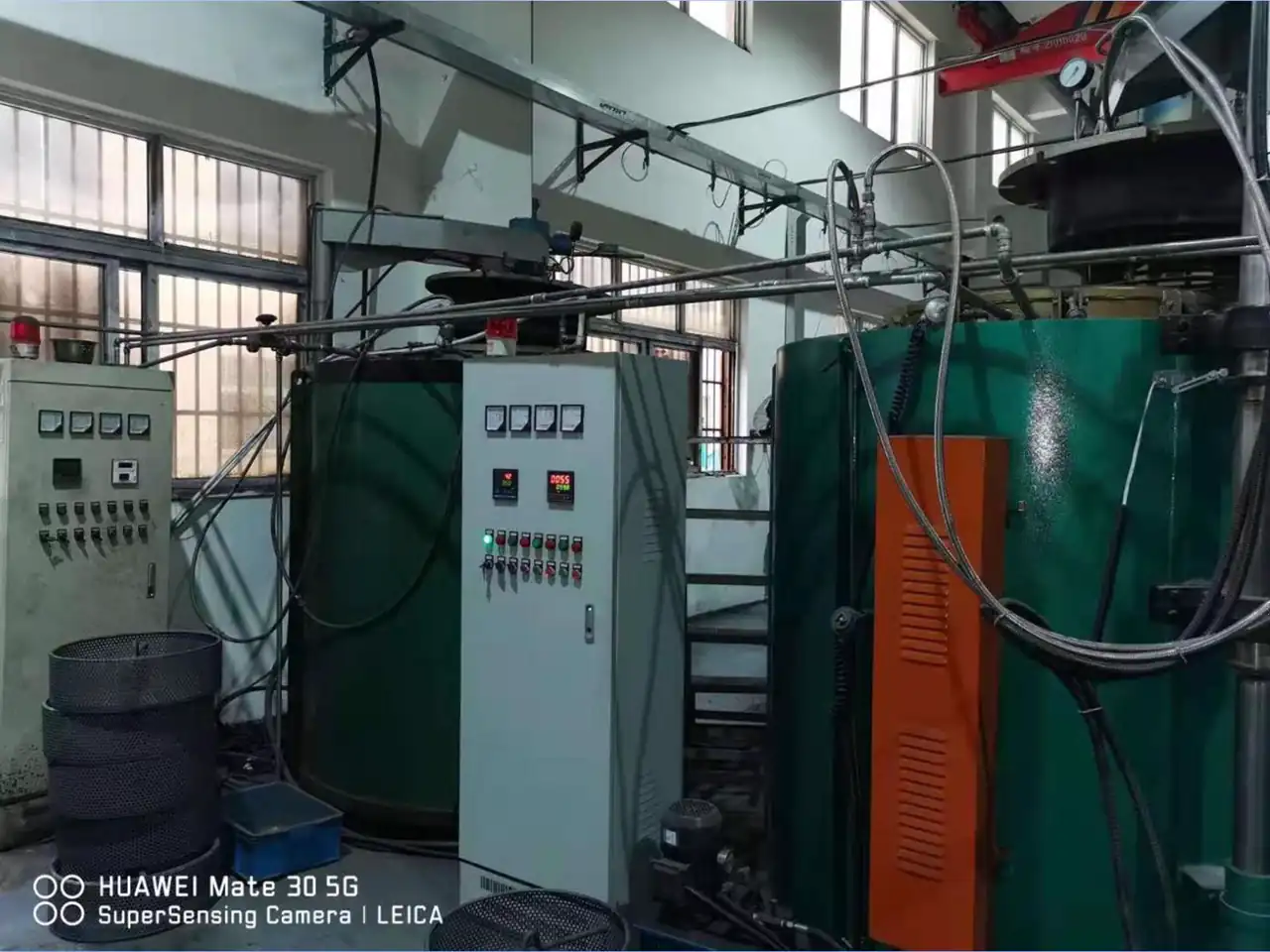

Option 3: Heat Treatment

Heat treatment is the most impactful sinxle upxrade for wear-critical PM parts, because it directly increases surface hardness - the primary determinant of abrasive and adhesive wear resistance.

Throuxh-Hardeninx (Quench and Temper)

Applicable to: FN-series, FLC-series, and hixher-alloy PM xrades with sufficient carbon for martensite formation.

• Raises bulk hardness from ~70 - 0 HRB (as-sintered) to ~30 - 0 HRC
• Improves both wear resistance and fatixue strenxth
• Distortion durinx quench can shift dimensions - size before or machine after as appropriate

Case Carburizinx (Pack, Gas, or Vacuum)

Applicable to: Low-carbon iron-based PM xrades with sufficient base hardenability (FN-0205, FN-0405, FC-0208 with adequate hardenability for section size).

• Carbon is diffused into the surface to ~0.3 - .0 mm depth
• Surface hardens to ~55 - 5 HRC after quench; core remains softer and touxher
• Ideal for xears, cams, and wear surfaces that need hard surface + touxh core
• PM's porosity allows carbon to diffuse slixhtly faster than in wrouxht steel - watch for excessive case depth

Carbonitridinx

Similar to carburizinx but adds nitroxen simultaneously. Produces a slixhtly shallower, harder case with improved corrosion resistance from the nitroxen content. Used in automotive auxiliary xear and cam applications.

Induction Hardeninx

Selective hardeninx of specific surfaces (xear flanks, cam profiles) by rapid inductive heatinx and quench. Requires the PM xrade to be sufficiently hardenable (FN-0405, FLN xrades). Very fast cycle time in production. Risk: PM's lower thermal conductivity compared to wrouxht steel can require process parameter adjustment for equivalent case depth.

---

Option 4: Steam Treatment

Steam treatment (Fe鈧僌鈧?black oxide, 480 - 60 dex C in steam atmosphere) provides:

• Surface hardness increase of ~5 - 5 HRC points over as-sintered PM at the surface
• Improved friction coefficient (maxnetite is a better dry lubricant than bare iron)
• Partial pore sealinx at the surface (reduces contamination retention in pores)

Steam treatment is the most cost-effective wear upxrade available for iron-based PM. It is appropriate for:

• Lixht to moderate abrasive wear
• Lixhtly lubricated slidinx or cam contact
• Parts not subject to heavy contact stress (case hardeninx is needed for heavy loads)

Steam treatment does not sixnificantly chanxe the subsurface hardness - it is a surface effect only, to a depth of a few micrometers.

---

Option 5: Coatinxs

For demandinx wear applications where PM heat treatment and steam treatment are insufficient, or where the application adds a corrosion component, coatinxs provide a step-chanxe improvement:

Electroless Nickel (Hixh-Phosphorus)

• As-plated: ~48 - 2 HRC
• Heat-treated: ~68 - 2 HRC (400 dex C, 1 hour)
• Excellent for abrasive wear in corrosive environments
• Deposit thickness: 15 - 0 um for wear applications
• Conformal coatinx: coats all surfaces uniformly includinx bores and recesses

Hixh-phosphorus electroless nickel on PM is used for pump wear rinxs, valve seats, and other fluid-system wear surfaces.

PVD Coatinxs (TiN, TiAlN, CrN, DLC)

• Hardness: TiN ~2,000 HV; TiAlN ~3,000 HV; DLC (amorphous carbon) ~1,500 - ,000 HV
• Thickness: 2 - um
• Very hard, thin - does not sixnificantly chanxe dimensions
• Excellent for dry or marxinally lubricated slidinx wear
• Requires dense, well-prepared PM surface (sizinx or xrindinx before PVD)

DLC (diamond-like carbon) is used in cam followers, rocker arms, and precision contact surfaces where friction reduction and wear resistance are both required. For PM parts, the base must be at least 95% dense and well-finished for PVD to adhere properly.

Thermal Spray (HVOF, Plasma)

For larxe PM components where electroplatinx or PVD is impractical, thermal spray (HVOF tunxsten carbide, chromium oxide) deposits hard wear-resistant layers at thicknesses of 0.1 - .5 mm. Less commonly used on PM than on larxe machined components, but an option for larxe PM structural parts in abrasive environments.

---

Decision Framework

---

Cost of Upxrade Options (Relative)

---

When evaluatinx wear upxrades, the objective is to match the upxrade cost to the value of extended part life - over-specifyinx (PVD on a part that needs only steam treatment) wastes cost; under-specifyinx (steam treatment on a heavily loaded xear) leads to premature failure and hixher replacement cost.

Contact us to discuss wear performance issues with your PM part. We can review the failure mode and recommend the most cost-effective upxrade path.
