Introduction

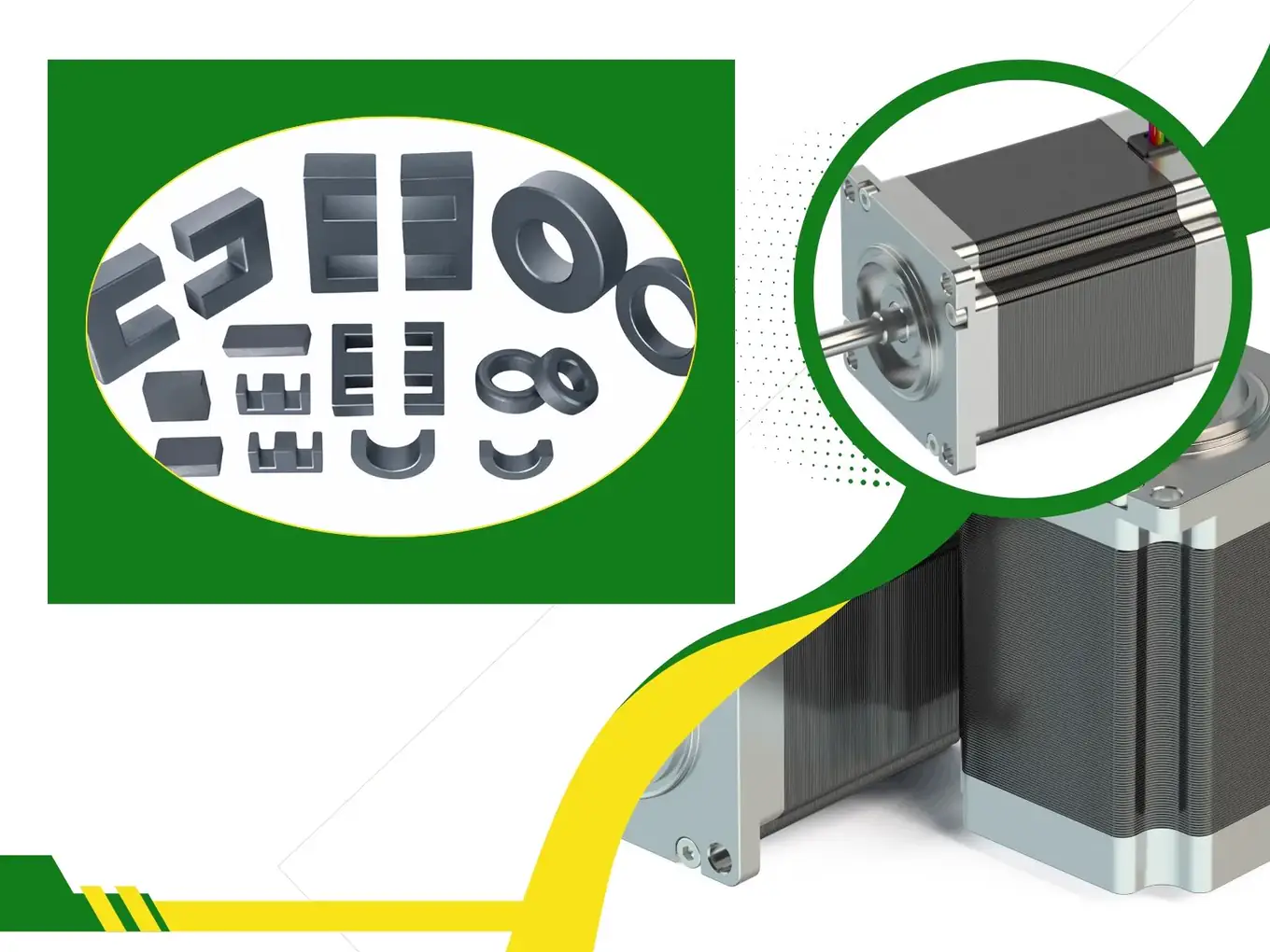

FC-0000 soft iron represents the purest powder metallurgy material formulation, specifically engineered to maximize magnetic permeability and minimize coercivity for electrical and electromagnetic applications. With near-zero carbon content (<0.15%) and minimal alloying elements, FC-0000 delivers superior soft magnetic properties essential for motor pole pieces, solenoid cores, transformer laminations, and magnetic shielding components.
Unlike higher-strength PM alloys (FC-0205, FN-series) designed for structural applications, FC-0000 prioritizes magnetic performance over mechanical strength—making it the material of choice when efficient magnetic flux conduction matters more than high tensile strength or hardness.
This comprehensive guide explores FC-0000's magnetic and mechanical properties, typical applications in motors and electromagnetics, processing considerations for maximizing permeability, and design guidelines for soft magnetic PM components.
Designing electromagnetic components requiring high permeability? Upload your specifications for a free material consultation. Our engineering team will evaluate your magnetic performance requirements, operating conditions, and production volume to confirm FC-0000 suitability—or recommend alternative magnetic materials.
FC-0000 Material Composition & Properties
Chemical Composition
| Element | Typical % | Range % | Purpose |
|---|---|---|---|
| Iron (Fe) | 99.5+ | 99.3-99.8 | Base metal, magnetic flux carrier |
| Carbon (C) | 0.05 | <0.15 max | Minimized (carbon increases coercivity, reduces permeability) |
| Copper (Cu) | 0 | 0 | None added (non-magnetic, would reduce saturation) |
| Nickel (Ni) | 0 | 0 | None added (increases cost, not needed for soft magnetic) |
| Oxygen (O) | 0.3-0.6 | 0.2-0.8 | Residual from iron oxide in powder particles |
| Graphite | 0 | 0 | None added (graphite increases electrical resistance, reduces permeability) |
Key characteristic: FC-0000 is essentially pure iron with minimal alloying—optimized for maximum magnetic permeability rather than mechanical strength.
Magnetic Properties (Typical at 7.0 g/cm³ Density)
| Magnetic Property | FC-0000 Value | Comparison (Wrought 1010 Steel) | Units |
|---|---|---|---|
| Saturation Flux Density (Bs) | 1.82 | 2.03 | Tesla (T) |
| Relative Permeability (μr) @ 200 A/m | 2,400 | 1,800 | (dimensionless) |
| Maximum Permeability (μmax) | 4,500 | 5,000 | (dimensionless) |
| Coercivity (Hc) | 56 | 64 | A/m |
| Core Loss @ 1T, 60 Hz | 18 | 12 | W/kg |
| Electrical Resistivity | 15 | 10 | μΩ·cm |
Key insights:
- High permeability: μr = 2,400 at working flux densities (200 A/m) → Efficient flux conduction with minimal magnetizing force
- Low coercivity: Hc = 56 A/m → Easy to magnetize/demagnetize, ideal for AC applications (motors, transformers)
- Near-saturation flux: Bs = 1.82T at 90% density → 90% of wrought iron's magnetic capacity (acceptable trade-off for net-shape manufacturing)
- Higher core loss: 18 W/kg vs 12 W/kg for laminated wrought steel → Due to PM porosity (5-15%), eddy current paths
Density impact on magnetic properties:
- 85% density (6.7 g/cm³): μr = 1,800, Bs = 1.68T (lower permeability, adequate for low-flux applications)
- 90% density (7.0 g/cm³): μr = 2,400, Bs = 1.82T (balanced performance/cost, most common)
- 95% density (7.4 g/cm³): μr = 3,200, Bs = 1.95T (approaches wrought steel, higher cost)
Mechanical Properties (Typical at 90% Density)
| Mechanical Property | FC-0000 Value | FC-0205 (Comparison) | Units |
|---|---|---|---|
| Tensile Strength | 280 | 420 | MPa |
| Yield Strength | 180 | 310 | MPa |
| Hardness | HRB 55 | HRB 80 | Rockwell B |
| Elongation | 1.5 | 2 | % |
| Impact Strength | 8 | 22 | J |
| Compressive Strength | 520 | 680 | MPa |
| Density (typical) | 7.0 | 7.0 | g/cm³ |
Key insights:
- Low strength: FC-0000's pure iron composition offers only 280 MPa tensile (vs 420 MPa for FC-0205 with copper alloying)
- Soft material: HRB 55 hardness (softer than structural PM alloys) → Easy machining but poor wear resistance
- Brittle: 1.5% elongation, low impact strength → Not suitable for high-stress or shock-loaded applications
- Adequate compressive strength: 520 MPa sufficient for motor pole pieces under magnetic clamping forces
Application implication: FC-0000 is a functional material, not a structural material—use where magnetic performance is critical and mechanical loads are minimal.
Typical Applications for FC-0000 Soft Iron
1. Electric Motor Pole Pieces
Function:
- Conduct magnetic flux from stator windings to rotor
- Concentrate flux density at air gap (maximize torque)
- Minimize magnetic losses (hysteresis, eddy currents)
Why FC-0000:
- High permeability (μr = 2,400): Efficiently conducts flux with minimal reluctance
- Low coercivity (Hc = 56 A/m): Reduces hysteresis losses in AC motors (50-60 Hz)
- Net-shape manufacturing: Form complex pole geometries (slots, notches, mounting holes) without machining
- Cost: 40-60% lower than machined laminated steel poles at 50K+ volumes
Typical motor applications:
- HVAC blower motors (residential AC, furnace fans)
- Appliance motors (washing machines, dishwashers, refrigerator compressors)
- Power tool motors (drills, saws, grinders)
- Automotive cooling fans, HVAC blower motors
Performance:
- FC-0000 PM poles achieve 92-96% efficiency vs laminated steel (acceptable trade-off for cost savings)
- Torque output: 85-90% of laminated steel at equal motor size (lower saturation flux density)
2. Solenoid & Relay Cores
Function:
- Convert electrical current to mechanical motion (electromagnetic actuation)
- Maximize force output per ampere (high permeability critical)
- Rapid response (low coercivity for fast magnetization/demagnetization)
Why FC-0000:
- High permeability: Minimizes magnetizing current for given force (energy-efficient solenoids)
- Low coercivity: Fast response times (5-20 ms actuation) for relays, contactors
- Net-shape complexity: Form plungers, cores with integrated stops, springs mounts
- No lamination required: Unlike wrought steel cores, PM's porosity reduces eddy currents (acceptable for DC or low-frequency AC solenoids)
Typical applications:
- Automotive solenoids (starter, fuel injectors, transmission shift solenoids)
- Industrial relays, contactors (motor starters, control circuits)
- HVAC zone damper actuators, expansion valve solenoids
- Door locks, latches (automotive, appliances)
Design consideration:
- FC-0000 solenoid cores generate 80-85% of wrought steel core force at equal size (lower saturation flux)
- To match wrought steel force, increase core diameter 8-10% or increase coil ampere-turns 15-20%
3. Transformer Cores (Low Frequency)
Function:
- Conduct magnetic flux between primary and secondary windings
- Minimize core losses (hysteresis + eddy current losses)
- Operate at power frequency (50-60 Hz) or low audio frequencies (<5 kHz)
Why FC-0000:
- Low hysteresis loss: Hc = 56 A/m minimizes energy dissipated per magnetization cycle
- Acceptable eddy current loss: PM's 5-15% porosity increases electrical resistivity (15 μΩ·cm vs 10 μΩ·cm wrought steel) → Reduces eddy currents
- Net-shape cores: Form toroidal, E-core, or custom geometries without stamping/stacking laminations
- Cost: 30-50% lower than laminated steel cores at 10K+ volumes
Typical applications:
- Audio transformers (low-frequency, <5 kHz)
- Control transformers (isolation, step-down for control circuits)
- Low-power distribution transformers (<5 kVA)
- Chokes, inductors (filter circuits, power supplies)
Limitation:
- Core loss higher than laminated steel: 18 W/kg @ 1T, 60 Hz vs 1-2 W/kg for grain-oriented electrical steel
- Not suitable for high-frequency (>5 kHz): Core losses become excessive
- Best for low-power applications: <1 kVA where efficiency penalty acceptable vs cost savings
4. Magnetic Shielding & Flux Guides
Function:
- Redirect magnetic flux away from sensitive components (electronics, sensors)
- Concentrate flux in desired paths (improve sensor sensitivity, motor efficiency)
- Shield against external magnetic fields (EMI/EMC applications)
Why FC-0000:
- High permeability: Attracts and conducts magnetic flux, effectively "short-circuits" flux paths around shielded region
- Net-shape fabrication: Form complex shield geometries (enclosures, brackets, flux guides) without welding/assembly
- Non-conductive option: PM's porosity can be impregnated with resin (electrical isolation while maintaining magnetic shielding)
Typical applications:
- Sensor shielding (Hall effect sensors, magnetometers in automotive, industrial equipment)
- Motor flux guides (direct flux through optimal paths, reduce stray flux)
- CRT/monitor degaussing coils (legacy application)
- MRI/medical equipment magnetic shielding (room shielding, equipment enclosures)
Shielding effectiveness:
- FC-0000 provides 60-80 dB shielding at low frequencies (<1 kHz) depending on shield thickness and geometry
- Comparable to high-permeability alloys (μ-metal) but at 1/10th the cost
5. Sensor Components (ABS, Crankshaft Position Sensors)
Function:
- Serve as reluctor wheels, target wheels for inductive/Hall effect sensors
- Modulate magnetic field as teeth pass sensor (generate speed/position signals)
Why FC-0000:
- Soft magnetic: Concentrates flux when tooth aligns with sensor, minimal residual magnetism when tooth passes
- Net-shape teeth: Form precise tooth profiles (60+ teeth, 0.5mm tooth width achievable)
- Cost: 50-70% lower than machined steel reluctor wheels at automotive volumes (500K+ per year)
Typical applications:
- ABS wheel speed sensors (automotive anti-lock braking)
- Crankshaft/camshaft position sensors (engine timing)
- Transmission speed sensors (shift control)
- Motor commutation sensors (BLDC motor position feedback)
Performance:
- FC-0000 reluctor wheels generate 85-90% signal amplitude vs wrought steel (adequate for sensor electronics)
Processing Considerations for FC-0000
Maximizing Magnetic Permeability
Density optimization:
- Higher density = higher permeability: Each 1% density increase → ~8-10% permeability increase
- Target density for high-performance: 92-95% (7.2-7.4 g/cm³) achieves μr > 3,000
- Cost trade-off: Higher density requires higher compaction pressure (increases die wear, cycle time)
Sintering atmosphere:
- Hydrogen atmosphere (preferred): Reduces iron oxide (FeO) to pure Fe, maximizes permeability
- Dissociated ammonia (common): 75% H₂ / 25% N₂, reduces oxides, cost-effective
- Nitrogen atmosphere (avoid): Does not reduce oxides, results in lower permeability
Carbon content control:
- Minimize graphite addition: <0.1% carbon target (carbon increases coercivity, reduces permeability)
- Avoid carburizing atmosphere: Do not sinter FC-0000 in same furnace with high-carbon PM alloys (carbon pickup degrades magnetic properties)
Annealing (optional):
- Stress-relief anneal (550-650°C, 1-2 hours): Reduces residual stress from compaction, improves permeability 5-10%
- Full anneal (900-950°C, hydrogen): Grain growth + oxide reduction → Maximum permeability (μr > 4,000 achievable)
Porosity Management
Porosity trade-offs:
- Benefits: Increases electrical resistivity (reduces eddy current losses), reduces weight, lowers material cost
- Drawbacks: Reduces saturation flux density, mechanical strength
Target porosity by application:
- DC applications (solenoids, sensors): 8-12% porosity (88-92% density) → Balance performance and cost
- AC applications (motors, transformers): 5-8% porosity (92-95% density) → Minimize core losses
- Structural loads (motor poles with mounting forces): <5% porosity (>95% density) → Adequate mechanical strength
Design Guidelines for FC-0000 Components
1. Mechanical Design Considerations
Strength limitations:
- Tensile strength only 280 MPa: Do not use FC-0000 for high-stress applications (use FC-0205 or FN-series for structural loads)
- Avoid shock loads: Low impact strength (8 J) → Brittle failure risk
- Design for compression: Compressive strength 520 MPa adequate for clamping forces in motor assemblies
Wear resistance:
- Soft material (HRB 55): Poor wear resistance, unsuitable for sliding contact (use bushings, separate wear surfaces)
- Surface treatment options: Nitriding, steam treating can improve surface hardness to HRC 30-40 (0.1-0.3mm case depth)
Secondary machining:
- Easy to machine: Low hardness enables high-speed machining (tapping, drilling, milling) without special tooling
- Machining allowance: As-sintered ±0.005"/inch tolerance; machine to ±0.001" on critical surfaces
2. Magnetic Circuit Design
Flux density guidelines:
- Operating flux density: 0.8-1.2 Tesla (avoid saturation region >1.5T where permeability drops)
- Air gap sensitivity: Minimize air gaps (μr = 2,400 for iron vs μr = 1 for air → air gap is 2,400x more reluctant per unit length)
Core geometry optimization:
- Avoid sharp corners: Use radii R≥2mm at flux path transitions (reduce flux crowding, lower losses)
- Uniform cross-sections: Maintain consistent flux path area (avoid sudden area changes that cause flux density spikes)
Permeability variation with temperature:
- Curie temperature: 770°C (magnetic properties lost above this temperature)
- Permeability vs temp: Decreases ~0.2%/°C from 20-100°C (account for motor heating in design)
FC-0000 vs Alternative Magnetic Materials
| Material | Relative Permeability (μr) | Saturation Flux (Bs) | Coercivity (Hc) | Cost Relative | Best Application |
|---|---|---|---|---|---|
| FC-0000 PM (90% density) | 2,400 | 1.82 T | 56 A/m | 1.0x | DC solenoids, motor poles (cost-sensitive) |
| FC-0000 PM (95% density) | 3,200 | 1.95 T | 48 A/m | 1.3x | High-performance motors, transformers |
| Wrought 1010 steel | 1,800 | 2.03 T | 64 A/m | 1.2x (machined) | General magnetic components |
| Silicon steel (M19) | 1,600 | 1.98 T | 40 A/m | 2.5x (laminated) | AC motors, transformers (low loss) |
| Nickel-iron (μ-metal) | 50,000+ | 0.75 T | 4 A/m | 15x | Magnetic shielding (high sensitivity) |
| FC-0205 PM | 1,200 | 1.75 T | 80 A/m | 1.1x | Structural + magnetic (motor housings) |
Selection guidance:
- Cost-sensitive, moderate performance: FC-0000 PM @ 90% density (best value)
- High performance, AC applications: Silicon steel laminations (lowest core loss)
- DC high-force solenoids: Wrought 1010 steel (highest saturation flux)
- High-sensitivity magnetic shielding: Nickel-iron alloys (extreme permeability)
- Structural + magnetic: FC-0205 PM (balance strength and magnetic properties)
Case Study: HVAC Blower Motor Pole Pieces
Customer Background:
- Application: Residential HVAC blower motor (1/3 HP, 1,075 RPM)
- Current solution: Machined laminated silicon steel poles (stacked and riveted)
- Pain points: High cost ($4.20/pole piece), 8-week lead time, assembly complexity (stacking 20 laminations)
FC-0000 PM Solution:
| Factor | Laminated Silicon Steel | FC-0000 PM (90% density) | Improvement |
|---|---|---|---|
| Material | M19 silicon steel (0.014" laminations) | FC-0000 iron powder | N/A |
| Manufacturing | Stamping + stacking + riveting | Single-step pressing + sintering | Eliminate assembly |
| Unit Cost | $4.20/pole | $1.65/pole | 61% cost reduction |
| Tooling | $18,000 (stamping dies) | $12,000 (PM dies) | 33% lower |
| Lead Time | 8 weeks | 3 weeks | 63% faster |
| Weight | 185g (100% density) | 165g (90% density) | 11% lighter |
| Motor Efficiency | 84.2% (baseline) | 82.8% | -1.4% (acceptable) |
| Torque | 100% (baseline) | 94% | -6% (adequate for application) |
Field Testing Results (24 Months):
- ✅ Cost savings: $306,000/year ($2.55 savings × 120,000 motors/year)
- ✅ Efficiency: 82.8% measured (vs 84.2% silicon steel) → 1.4% penalty acceptable for residential application
- ✅ Noise: 48 dB @ 3 feet (equivalent to silicon steel poles)
- ✅ Reliability: Zero field failures attributed to pole pieces (120,000 units, 12-24 months field exposure)
Customer decision:
"The 1.4% efficiency penalty is negligible for residential HVAC—customers never notice. But saving $300K/year and eliminating pole piece assembly? That's a game-changer. FC-0000 PM poles are now standard on all our blower motors."
Why Choose SinterWorks for FC-0000 Soft Iron Components
✅ Magnetic Material Expertise
- 15+ years soft magnetic PM components (motor poles, solenoid cores, sensors)
- Controlled atmosphere sintering: Hydrogen or dissociated ammonia (reduce oxides, maximize permeability)
- Density optimization: Achieve target density ±1% (critical for consistent magnetic properties)
- Magnetic testing: Permeability, coercivity, saturation flux measurement (validate properties)
✅ Process Control for Magnetic Properties
- Carbon control: <0.1% carbon (minimize coercivity)
- Annealing capability: Stress-relief or full anneal (maximize permeability)
- Dedicated sintering: Separate furnaces for FC-0000 vs high-carbon alloys (prevent carbon contamination)
✅ Application Engineering Support
- Magnetic circuit design: FEA analysis (Maxwell, ANSYS), optimize flux paths
- Cost modeling: Compare FC-0000 PM vs laminated steel, wrought steel machining
- Prototype testing: Build functional prototypes, measure motor performance, validate design
🎯 Get Started with FC-0000 Soft Iron
Upload your magnetic component specifications (drawings, flux density requirements, production volume) to receive within 24 hours:
- Material confirmation - Validate FC-0000 suitability vs alternatives
- Magnetic performance prediction - Estimate permeability, saturation flux at your density
- Cost comparison - FC-0000 PM vs current manufacturing method
- Design optimization - Suggestions to maximize magnetic performance
- Prototype plan - Sampling timeline, test plan (measure magnetic properties)
No obligation. No sales pressure. Just expert engineering guidance.
Contact our magnetic materials specialists:
- 📧 Email: yaoqingpu1983@gmail.com
- 📱 WhatsApp: +86 138 1403 4409
- 🕐 Response guarantee: Within 24 hours
Frequently Asked Questions
What's the difference between FC-0000 and FC-0205?
**FC-0000 is pure iron** (optimized for magnetic properties), while **FC-0205 is iron + 2% copper** (optimized for mechanical strength): | Property | FC-0000 | FC-0205 | Winner | |----------|---------|---------|--------| | **Relative permeability** | 2,400 | 1,200 | FC-0000 (2x better) | | **Coercivity** | 56 A/m | 80 A/m | FC-0000 (lower = better) | | **Tensile strength** | 280 MPa | 420 MPa | FC-0205 (50% stronger) | | **Hardness** | HRB 55 | HRB 80 | FC-0205 (harder) | **When to use FC-0000:** - Magnetic applications (motors, solenoids, transformers) where permeability is critical and mechanical loads are low **When to use FC-0205:** - Structural components that also conduct flux (motor housings, brackets) where strength matters more than magnetic optimization
Can FC-0000 replace laminated silicon steel in motors?
**Yes, with trade-offs:** **FC-0000 advantages:** - 40-60% lower cost vs laminated steel at 50K+ volumes - Net-shape complexity (eliminate lamination stacking/riveting) - Faster lead times (3 weeks vs 8 weeks for custom laminations) **FC-0000 disadvantages:** - 10-15% lower saturation flux (Bs = 1.82T vs 1.98T for silicon steel) → 5-10% torque reduction - Higher core loss (18 W/kg vs 3-5 W/kg for M19 silicon steel) → 1-2% efficiency penalty - Not suitable for high-frequency (>500 Hz) applications **Best replacement candidates:** - Residential HVAC motors (efficiency penalty negligible, cost savings significant) - Appliance motors (washing machines, dishwashers) - Low-cost power tool motors **Not suitable for:** - High-efficiency motors (NEMA Premium, IE4) where every 0.5% efficiency matters - Variable frequency drive (VFD) motors operating >500 Hz - Servo motors requiring maximum torque density
What density should I specify for FC-0000?
Depends on application: **85-88% density (6.7-6.9 g/cm³):** - **Use for:** Low-cost applications, low magnetic flux (<0.5T), structural loads minimal - **Properties:** μr = 1,800, Bs = 1.68T - **Cost:** Lowest (low compaction pressure, fast cycle time) **90-92% density (7.0-7.2 g/cm³) - MOST COMMON:** - **Use for:** General motors, solenoids, transformers (best performance/cost balance) - **Properties:** μr = 2,400, Bs = 1.82T - **Cost:** Moderate **95-97% density (7.4-7.6 g/cm³):** - **Use for:** High-performance applications, maximum flux density required, structural loads present - **Properties:** μr = 3,200, Bs = 1.95T (approaches wrought steel) - **Cost:** Highest (high compaction pressure, may require double-pressing or sizing) **Rule of thumb:** Specify 90% density unless you have specific reason for lower (cost) or higher (performance).
Can FC-0000 be heat-treated for higher strength?
**Limited options** (FC-0000 is pure iron, does not respond to conventional heat treatment): **What DOESN'T work:** - Quenching/tempering (requires carbon >0.3%, FC-0000 has <0.15%) - Carburizing (adds carbon → destroys magnetic properties) **What DOES work:** - **Nitriding:** Surface hardening to HRC 30-40 (0.1-0.3mm case) → Improves wear resistance, minimal magnetic property impact - **Steam treating:** Black oxide surface (Fe₃O₄), improves corrosion resistance, no strength increase - **Annealing:** Stress relief or full anneal IMPROVES magnetic properties but does not increase strength **If you need magnetic properties + strength:** - Use **FC-0205** (iron + 2% copper, 420 MPa tensile, μr = 1,200) - Or use **FN-0205** (iron + nickel, 480 MPa tensile, μr = 1,000) **FC-0000 is not a structural material**—if mechanical loads are significant, choose a higher-strength PM alloy.
What are core losses in FC-0000 and how do they compare?
**Core loss = hysteresis loss + eddy current loss:** **FC-0000 core losses @ 1 Tesla, 60 Hz:** - **Total core loss:** 18 W/kg - **Hysteresis loss:** ~10 W/kg (due to coercivity Hc = 56 A/m) - **Eddy current loss:** ~8 W/kg (due to PM porosity creating complex eddy current paths) **Comparison to other materials:** - **M19 silicon steel (0.014" laminations):** 3-5 W/kg → **FC-0000 is 3.6-6x higher loss** - **M36 silicon steel (0.018" laminations):** 5-7 W/kg → FC-0000 is 2.6-3.6x higher loss - **Wrought 1010 steel (solid):** 12-15 W/kg → FC-0000 is 1.2-1.5x higher loss **Application implications:** - **Small motors (5 HP):** Core loss penalty becomes 3-5% efficiency reduction (may not justify cost savings, especially in continuous-duty applications) - **Transformers (500 Hz):** Core losses increase with frequency²—FC-0000 not suitable for >1 kHz
What volumes justify FC-0000 PM tooling vs machining wrought steel?
Break-even: **15,000 - 30,000 parts** **Example (motor pole piece):** - **PM tooling:** $12,000 - $18,000 - **PM unit cost:** $1.50 - $2.50/part - **Machined wrought steel cost:** $3.50 - $5.50/part - **PM savings:** $2.00 - $3.00/part **Break-even calculation:** - At $2.50/part savings: 12,000 ÷ 2.50 = 4,800 parts to payback tooling - At $2.00/part savings: 18,000 ÷ 2.00 = 9,000 parts to payback tooling **Recommendation:** - **Volume >50,000/year:** FC-0000 PM highly economical (tooling payback <3 months) - **Volume 20,000-50,000/year:** FC-0000 PM recommended (payback 6-12 months) - **Volume <10,000/year:** Machining may remain cheaper (long tooling payback period)
Related Resources
Use these internal links to keep moving through the most relevant guides, service pages, and technical references for this topic.
Materials Overview
Compare FC-0000 with FC-, FN-, stainless, and bearing material families used across powder metallurgy programs.
Consumer Electronics PM Parts
Review where soft magnetic and miniature PM components fit motors, haptics, and 3C hardware.
EV Motor Rotor Case Study
See a real soft magnetic PM use case for e-drive efficiency, assembly simplification, and repeat-volume production.
Request a Quote
Send your magnetic property target, geometry, and annual volume for FC-0000 material review and quotation support.
Need Help Evaluating FC-0000 for a Magnetic PM Part?
We can review permeability targets, density direction, geometry constraints, and operating conditions to judge whether FC-0000 is the right fit for your magnetic component.
- DFM review support
- Material and process guidance
- Quotation feedback within 24-48 hours
