Design for Manufacturability (DFM) Guide for Powder Metallurgy

Introduction

Design for manufacturability is especially important in powder metallurgy because the process is tooling-driven. Once the die concept is fixed, every avoidable geometry problem becomes more expensive to correct.

A good PM design is not only functional in the final assembly. It is also easy to fill with powder, compact in one controlled direction, eject without damaging the green part, and sinter with stable dimensional behavior.

This guide outlines the most important DFM principles for engineers who want to reduce tooling risk, shorten launch time, and keep PM parts cost-effective in production.

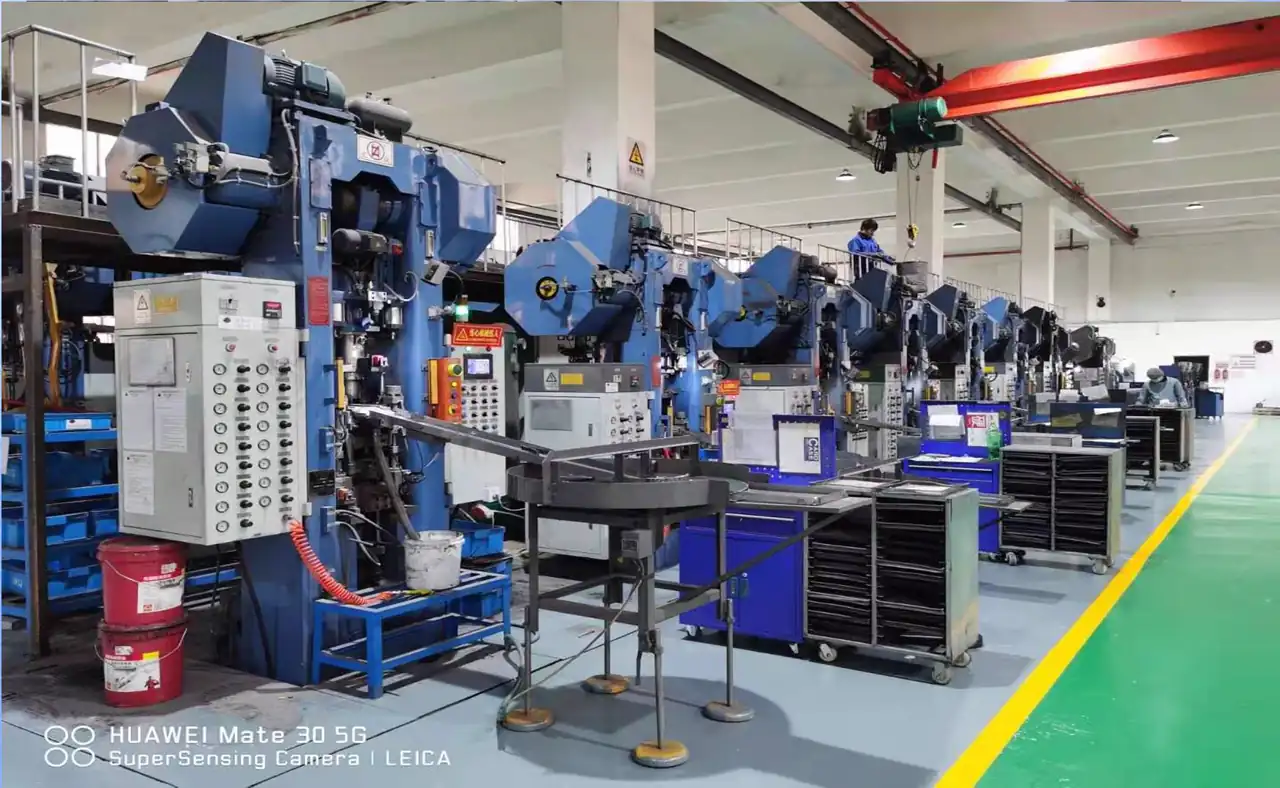

Start with Pressing Direction

The first DFM question in PM is simple: can the geometry be formed consistently in the pressing direction?

Standard powder metallurgy works best when features are compatible with axial compaction and ejection. Once geometry fights the pressing direction, tooling becomes more complex and cost rises quickly.

As a general rule:

• keep the part concept friendly to one main pressing direction
• avoid side features that require special tooling unless they are essential
• treat undercuts, side holes, and re-entrant shapes as exceptions rather than defaults

If a feature cannot be formed economically in the die, it is often better to redesign it or machine it after sintering.

Draft Angles and Ejection

Draft angle is required so the compact can eject from the tool without cracking and without causing excessive die wear.

Typical rule-of-thumb ranges are:

• external surfaces: about 0.5 to 1.5 degrees
• internal surfaces or holes: about 0.5 to 2 degrees depending on feature depth
• more complex features: use the minimum practical draft that still supports safe ejection

Too little draft increases ejection force and tool wear. Too much draft can distort the intended geometry and reduce dimensional precision. The right value depends on part depth, material, surface area, and die configuration.

Wall Thickness and Section Uniformity

Wall thickness should be realistic and as uniform as possible. Large differences between thin and thick sections lead to uneven density, unstable compaction, and more dimensional variation after sintering.

Useful guidelines include:

• start with about 1.5 mm as a practical minimum for many general PM features
• use gradual transitions between thick and thin areas
• avoid heavy mass concentration unless it is necessary for function
• review very thick sections carefully because they can compact and sinter differently from the rest of the part

If a design needs a heavy section, consider using recesses, reliefs, or a two-piece assembly concept instead of forcing all mass into one compacted shape.

Holes, Slots, and Cavities

Features parallel to the pressing direction are much easier to produce than features perpendicular to it.

For axial holes and cavities:

• keep diameters practical for tooling strength and powder flow
• avoid excessive depth-to-diameter ratios
• review blind-hole support and punch strength during tooling design

For cross holes, side grooves, and narrow slots:

• redesign them when possible
• move them to a secondary machining step when necessary
• avoid deep and narrow features that are difficult to fill or eject reliably

Threads are another common example. Standard PM tooling usually does not form finished threads directly, so tapped or rolled threads after sintering are often the better solution.

Fillets, Corners, and Stress Control

Sharp corners are rarely good PM design. They create stress concentration in the part, weaken punches and die details, and make powder flow less predictable.

A practical design approach is to:

• use internal radii instead of sharp inside corners
• add external edge breaks where possible
• give highly loaded geometry smooth transitions instead of abrupt section changes

Even small radii can improve tool life and reduce the risk of defects without affecting function.

Shrinkage and Dimensional Planning

PM parts change dimension during sintering, so critical features should never be designed as if the compact leaves the die at final size.

Instead:

• expect the supplier to compensate tooling based on material and process history
• identify which dimensions are truly critical to function
• avoid putting unnecessarily tight tolerances on non-critical features
• plan sizing or machining only where the function justifies it

This is one of the biggest DFM wins in PM. Many cost problems start when a drawing demands tight precision everywhere instead of only where it matters.

Features That Often Need Secondary Operations

Some features are possible in PM, but not always sensible to form directly.

Common candidates for secondary operations include:

• threads
• critical bearing fits
• sealing surfaces
• very tight bores
• precision datum faces
• side holes and certain undercuts

The most economical program often uses PM for the base geometry and then applies limited secondary work only to the surfaces that truly need higher precision.

Common DFM Mistakes

The most frequent PM design mistakes are usually not complex. They are basic geometry choices that ignore how the process actually works.

Typical problems include:

• ignoring pressing direction during part layout
• using walls that are too thin or highly non-uniform
• adding sharp corners where radii should be used
• specifying cross holes or undercuts without considering tooling cost
• putting unnecessarily tight tolerances on every dimension
• overlooking shrinkage and expecting as-pressed geometry to solve everything

Each of these mistakes can increase tooling complexity, slow launch, and raise total part cost.

Practical DFM Checklist

Before freezing a PM design, review the part against a short checklist:

• Is the main geometry compatible with one pressing direction?
• Are draft angles realistic for ejection?
• Are wall thicknesses reasonably uniform?
• Are fillets and radii used where needed?
• Are any cross holes, threads, or undercuts truly necessary?
• Have critical dimensions been separated from non-critical ones?
• Is shrinkage being considered in the tooling plan?
• Are secondary operations limited to features that really need them?

If the answer to several of these questions is no, the design is not ready for tooling yet.

Conclusion

Good PM DFM is really about making better decisions earlier. The goal is not to force every feature into the die. The goal is to create a part that works, launches smoothly, and stays economical over production life.

If you review pressing direction, wall thickness, draft, shrinkage, and critical features early, powder metallurgy becomes a far more predictable process.

That is why the best time to optimize a PM part is before tooling release, when design adjustments are still fast and inexpensive.
