Powder Metallurgy Tooling Cost Guide: What Drives Cost and When It Pays Back

Introduction

When buyers ask about powder metallurgy tooling cost, they are usually trying to answer two questions at once:

1. what will the upfront tool investment be
2. will that investment reduce total part cost enough to justify the program

That second question matters more.

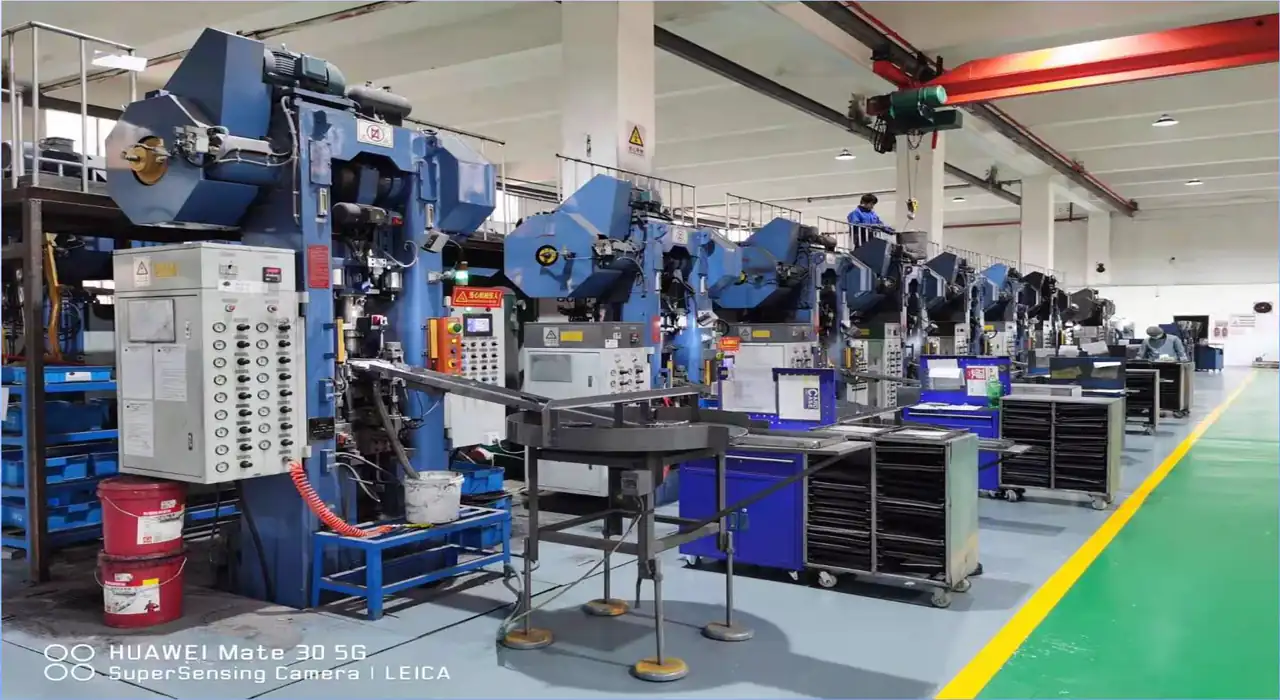

PM is a tooling-based manufacturing process. Once the tool is qualified, it can produce large quantities of repeatable parts with high material utilization and lower per-part cost than many subtractive routes. But the payback depends on how well the part suits the process.

What Is Included in PM Tooling Cost

Tooling cost is not just a single die block.

A PM tooling package may include:

• compaction die components
• upper and lower punches
• core rods or inserts
• die sets for multi-level geometry
• sizing tooling if secondary calibration is required
• gauges, inspection fixtures, or development fixtures

For more demanding programs, engineering time for process development and tryout is also part of the real tooling investment.

The Main Factors That Drive Tooling Cost

1. Part Geometry

The more difficult the part is to compact, fill, and eject, the more expensive the tooling becomes.

Features that commonly increase cost include:

• multi-level geometry
• deep or thin sections
• fine gear profiles
• tight concentricity requirements
• sharp geometry transitions
• features that pressure-fill unevenly

2. Tolerance Expectations

A part that only needs standard as-sintered control is very different from a part that must hit tighter dimensional requirements after sizing or additional calibration.

Higher control usually means:

• more precise tooling surfaces
• more development time during tryout
• tighter maintenance discipline in production
• possible secondary tooling

3. Production Volume and Cavity Strategy

Expected annual volume changes the right tooling strategy.

The correct tool design is not always the cheapest tool. Sometimes a stronger cavity strategy reduces total program cost by improving productivity.

4. Material and Density Requirements

Material selection affects compaction behavior and tool wear. Programs requiring higher density, harder material behavior, tighter green strength control, or heavier wear conditions may require more attention in tooling design and process tuning.

5. Secondary Operations

Sometimes buyers focus only on the compaction tool and forget that secondary operations can influence total tooling investment.

Examples include:

• sizing tools for tighter dimensions
• gear calibration tooling
• machining fixtures
• inspection gauges

What Usually Increases Cost the Fastest

These design conditions tend to move a PM tool from straightforward to expensive more quickly:

• part geometry that is not aligned with pressing direction
• very thin walls or fragile green sections
• many levels or complex punch movement
• unrealistic tolerance expectations for as-sintered condition
• part revisions after tooling strategy is already fixed

Late design changes are often more expensive than initial geometry complexity.

How to Think About Tooling Payback

A better decision framework is:

`tooling investment vs unit cost reduction x expected production quantity`

If PM lowers unit cost meaningfully against machining, casting, or another route, the tool often pays back surprisingly fast when annual volume is stable.

When Tooling Cost Is Usually Easy to Justify

PM tooling investment is usually easier to justify when:

• annual demand is stable
• the part is structurally repeatable
• material waste in current production is high
• machining time in the current route is expensive
• the part family may scale into multiple years of demand

These are common reasons buyers convert a machined part into a PM program.

When Buyers Should Slow Down

A tooling-backed PM route deserves a slower decision if:

• the design is still moving significantly
• annual volume is uncertain
• the part is too complex for efficient compaction
• tolerances suggest heavy secondary work that eliminates the PM advantage
• another process is a better geometric fit

How to Reduce Tooling Cost Before Tool Build

The most effective time to control tooling cost is before the tool is released.

A good engineering review can often reduce cost by:

• simplifying levels or wall transitions
• moving non-press-friendly features to secondary operations
• adjusting tolerance strategy on non-critical dimensions
• aligning geometry better with the pressing direction
• selecting a more practical material and density target

What Buyers Should Send for a Better Tool Quote

If you want a realistic PM tooling quotation, send:

• part drawing or 3D model
• target annual quantity
• material preference or performance target
• critical dimensions and tolerances
• application description
• any current manufacturing route and pain point

Conclusion

Powder metallurgy tooling cost should be treated as a program investment, not just an upfront expense line.

The final number depends on geometry, tolerance demands, cavity strategy, material behavior, and whether the part truly fits the PM process. When the design and volume are right, that investment often unlocks lower unit cost, repeatable quality, and strong long-run economics.
